2017 New 4 stroke 60CC Gas ATV mini Quad bike
2017 New 4 stroke 60CC Gas ATV mini Quad bike
Item NO.: AT0601
Category: Gas ATV
Update:
11/30/2016 2:18:32 AM
Inquire
Print

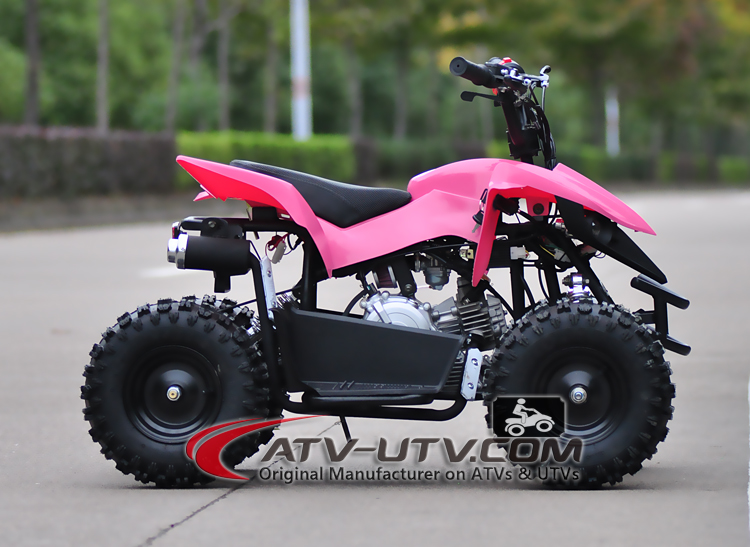

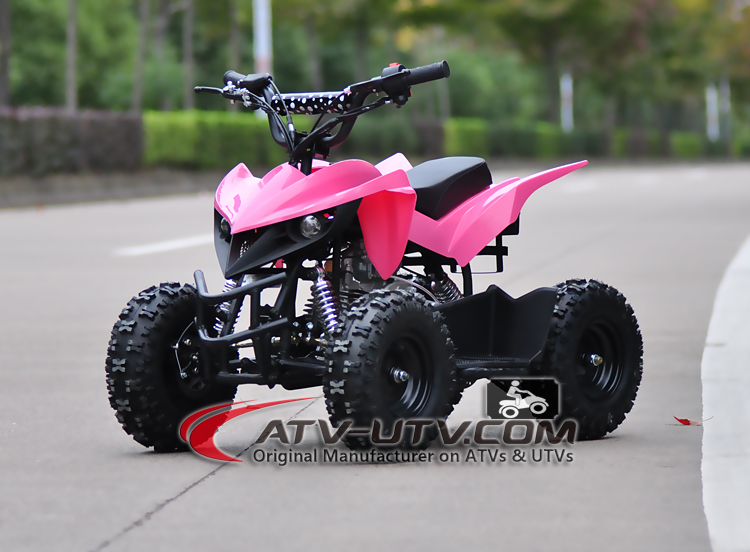

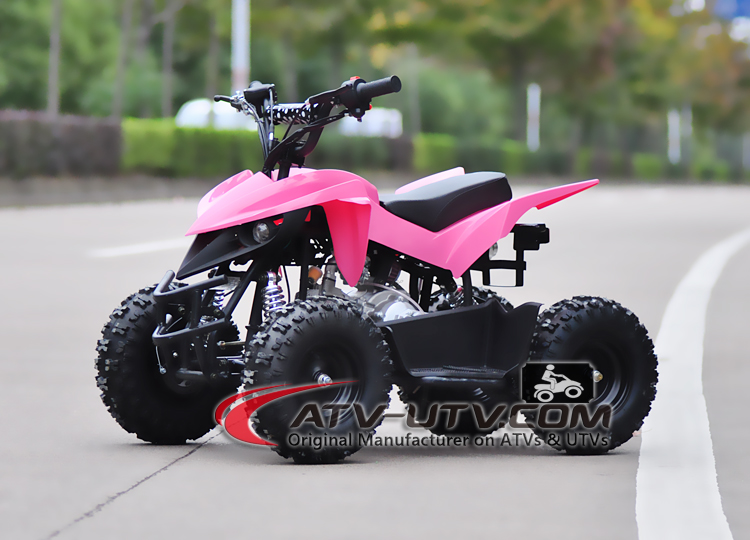

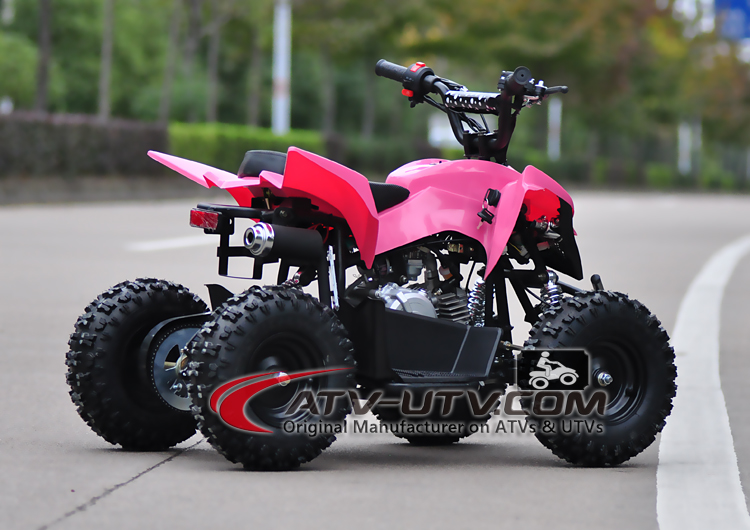

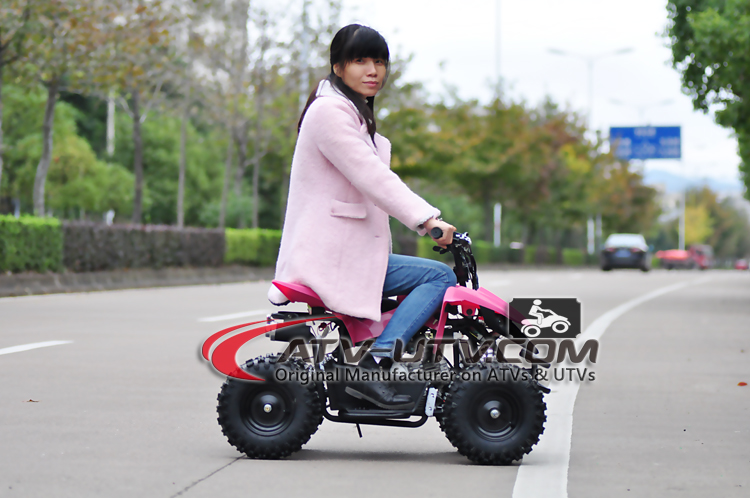

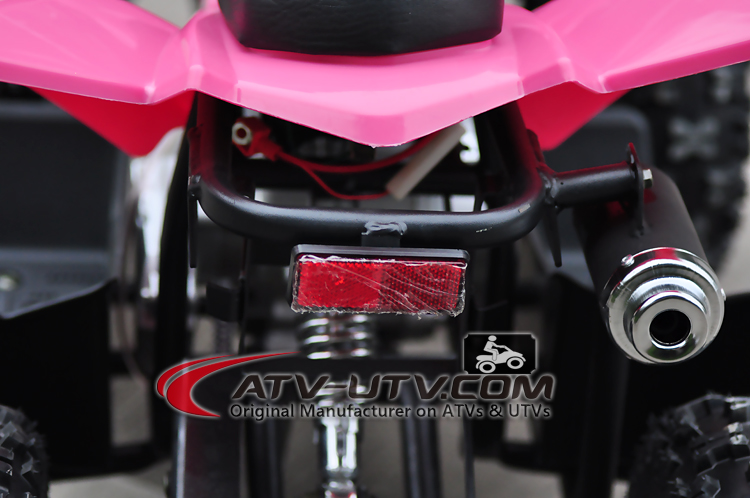

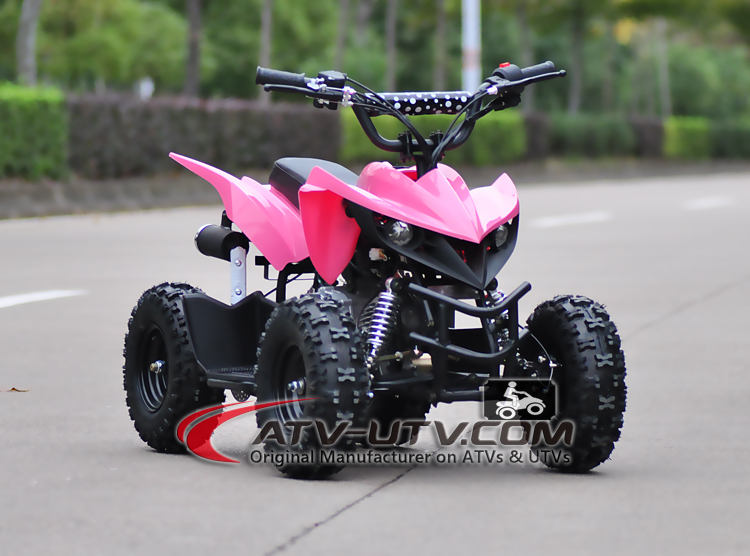

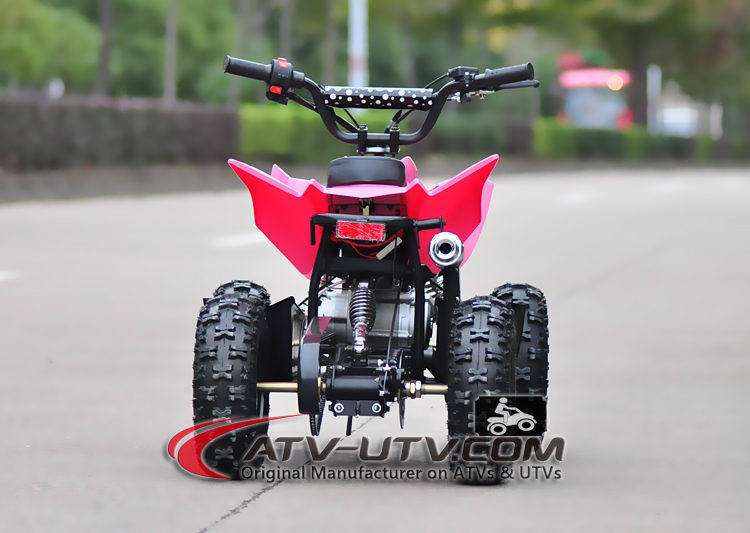

More Pictures:

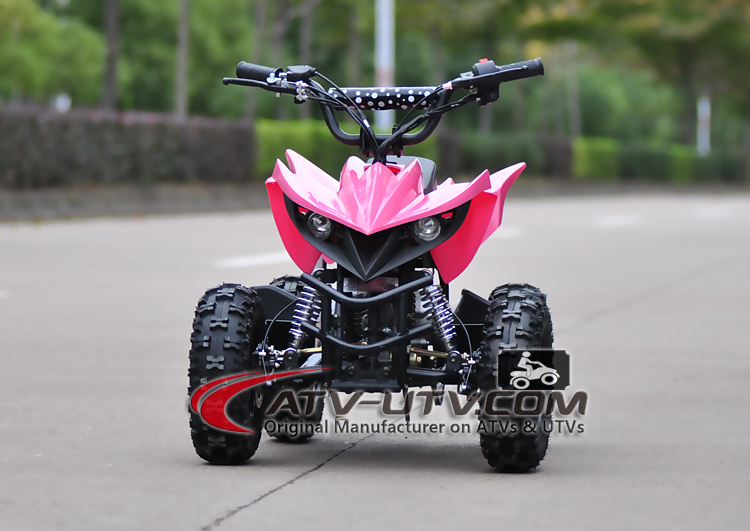

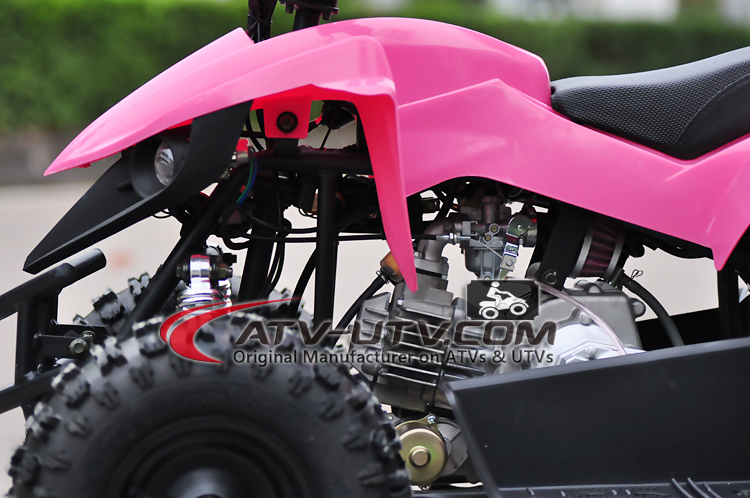

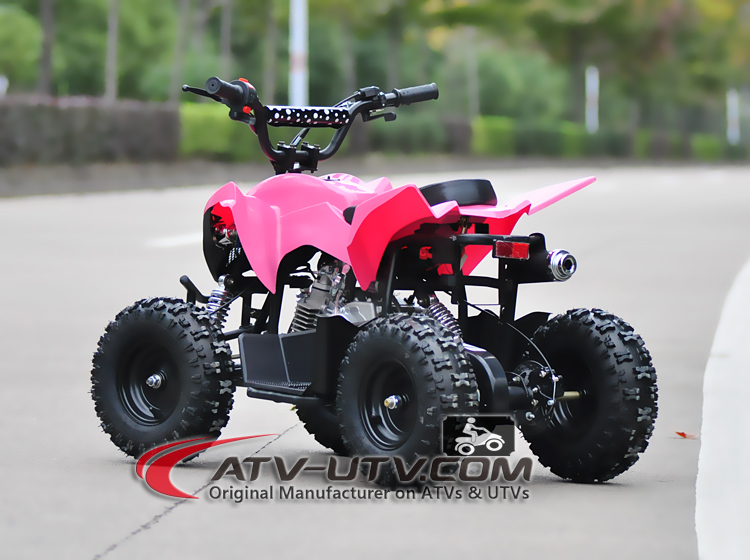

2017 New 4 stroke 60CC Gas ATV mini Quad bike



Product Discription:

Wheel number: 4
Product dimensions: 1065x630x740mm
Piston displacement: 60cc,SOHV 4 stroke
Fuel tank volume: 1L
Compression ratio: 10:1
Start method: Electric starter
Clutch: automatic
Engine type: single cylinder, 4-stroke, air-cooled
Max. Power: 1.8kw/7000r/min
Max.torque:2.4N.M
Load capacity: 65kgs/143lbs
Max speed: 35km/h
Brake: Front and rear disc brake
Transmission: chain drive
Engile oil cap: 0.5L
Engile oil: SF-15W-40
Oil pump: Inner-outer rotor type
Lubrication: Pressure/Splash
Ignition mode: CDI
Wheel size: 13x5-6 with steel hub
Ground clearance: 80mm
Wheel base: 715mm
Climb capacity: ≥10 degrees
Color available: red, blue, black, yellow, green
Package: Iron cage with carton outside
Net weight: 45kgs/99lbs
Gross weight: 53kgs/116.6lbs
Carton size: 100x58x52cm/pc
Container: 88pcs/20’, 228pcs/40’HQ
