60V Electric Big Quad ATV Bike with 2200W AC Motor
60V Electric Big Quad ATV Bike with 2200W AC Motor
Item NO.: EA2201
Category: Electric ATV
Update:
12/20/2015 11:48:30 PM
Inquire
Print

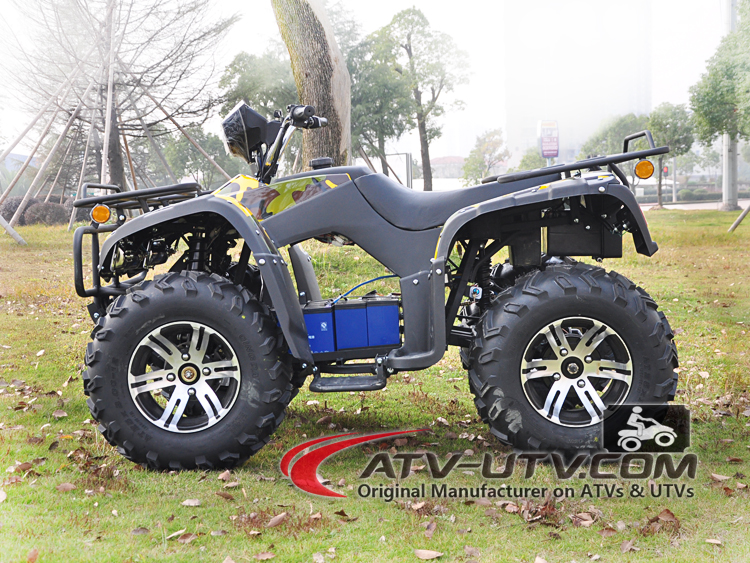

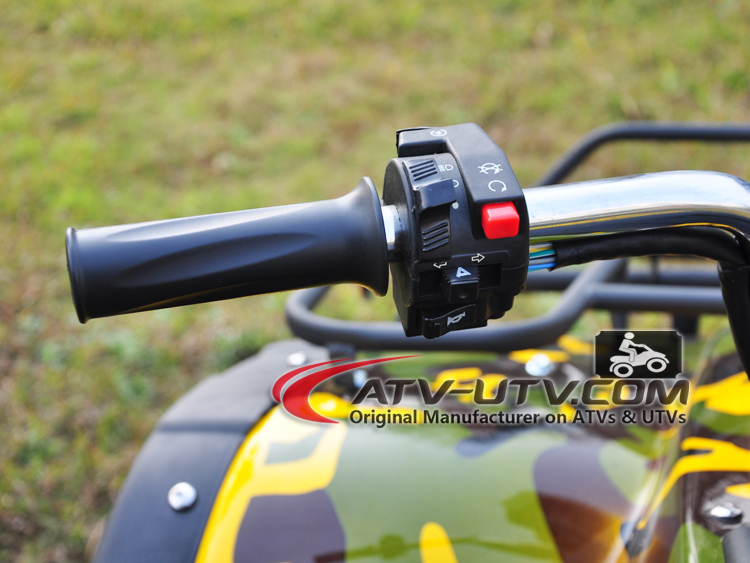

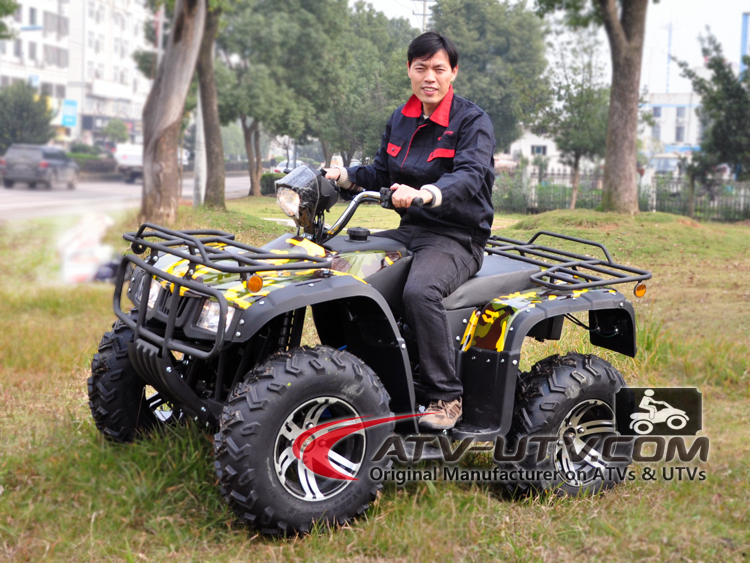

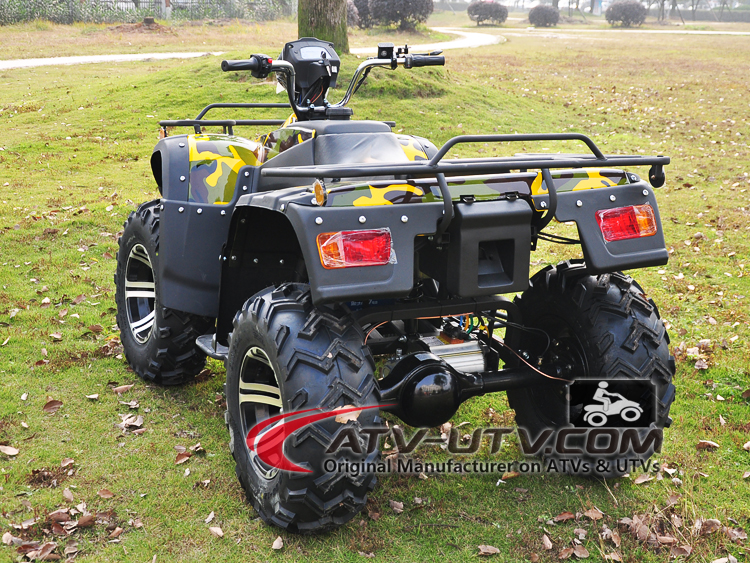

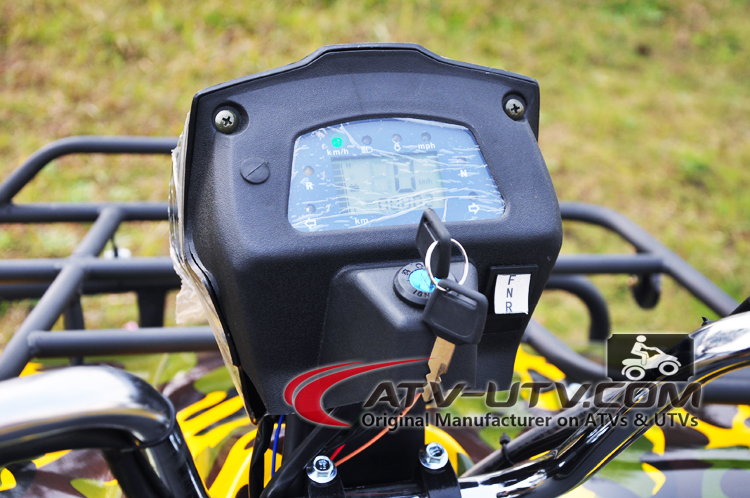

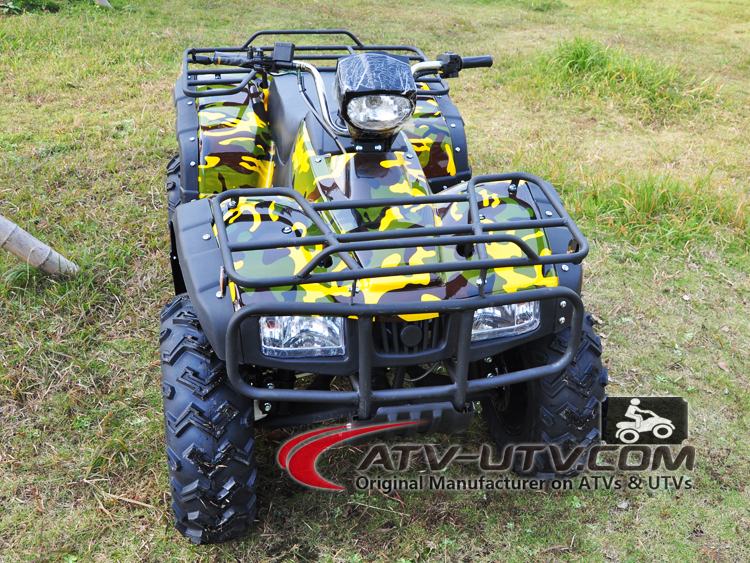

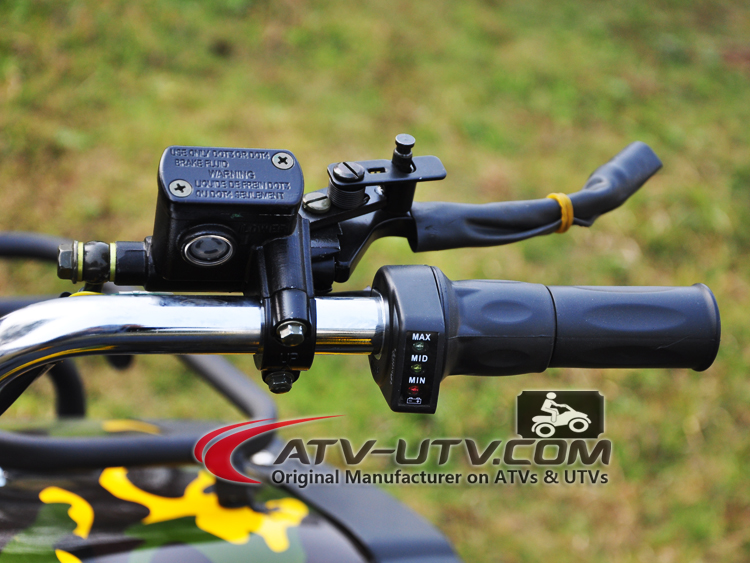

More Pictures:

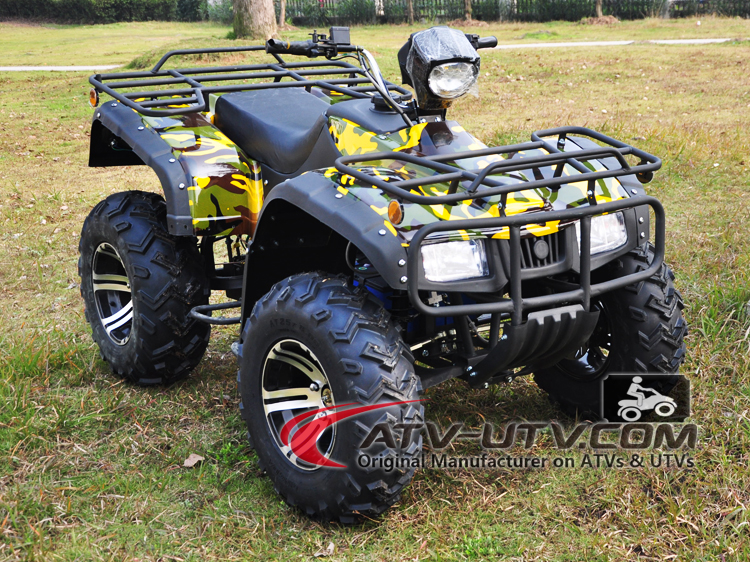

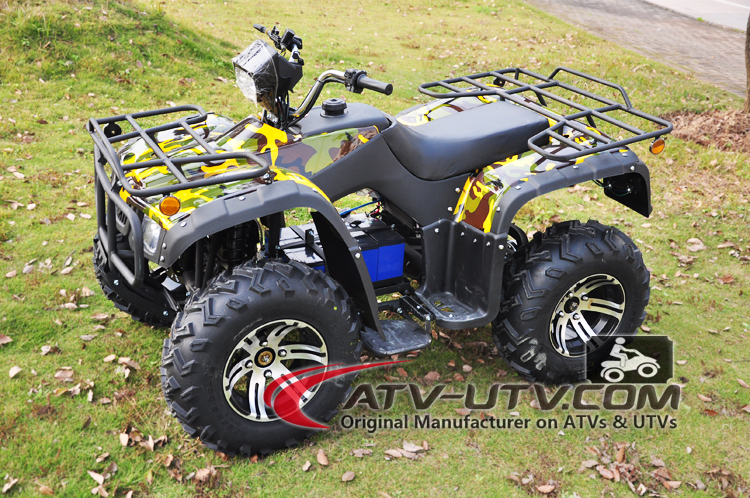

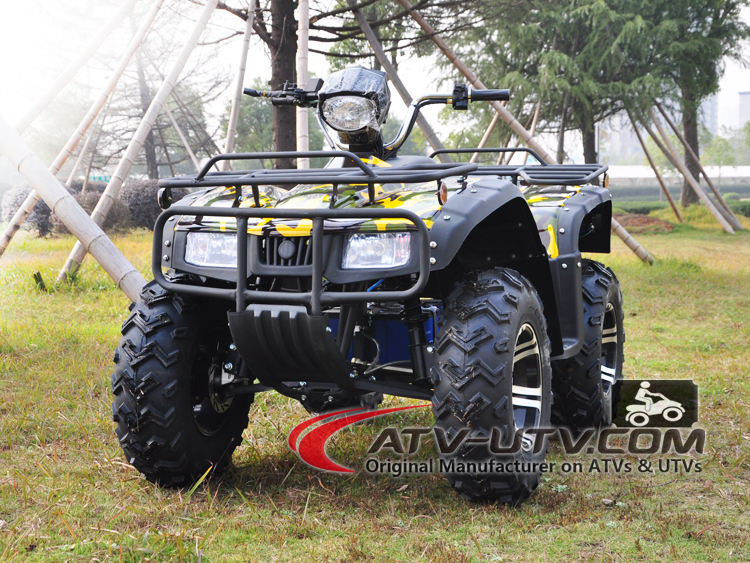

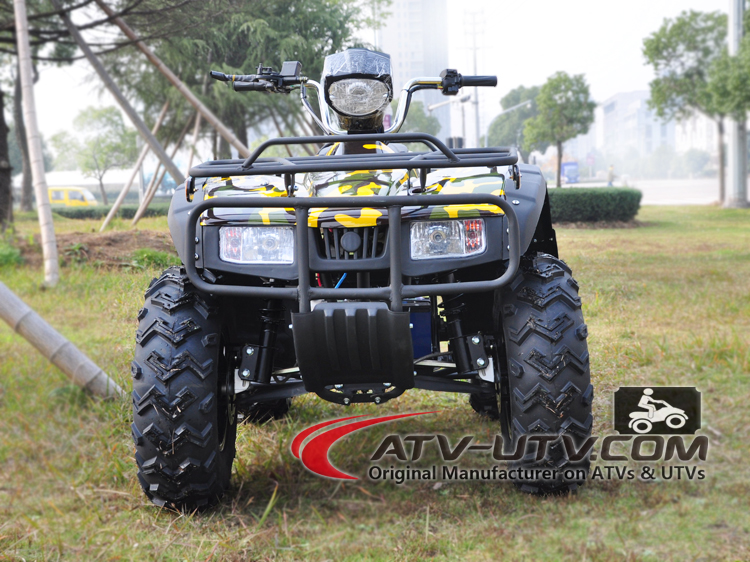

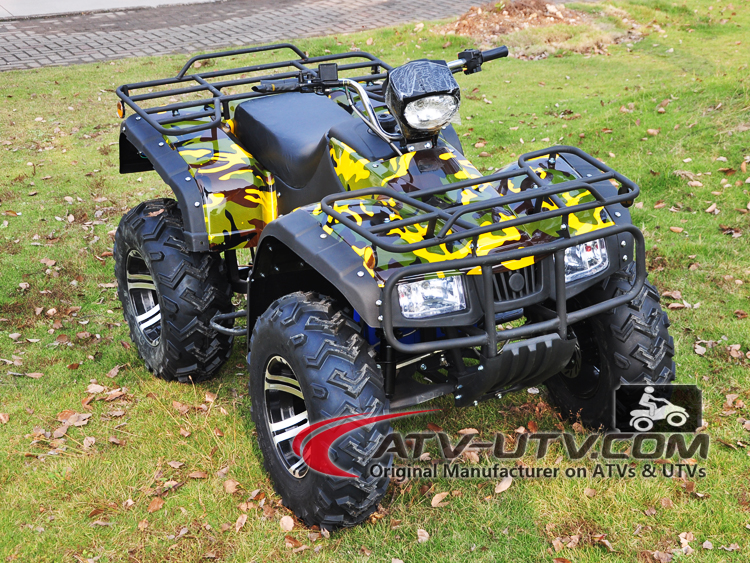

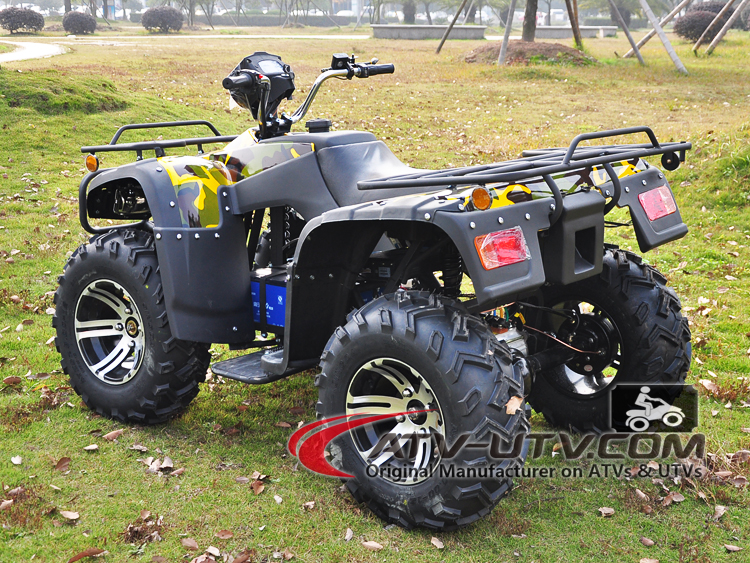

60V Electric Big Quad ATV Bike with 2200W AC Motor



Product Discription:

60V Electric Big Quad ATV Bike with 2200W AC Motor

Wheel number: 4
Product size: 1900x1140x1200mm
Motor power: 2200W
Battery: 60V 50AH
Rate power: 2200W±10%
AC Motor Running Speed: 3000rpm
Charging power input: 110-240V/50-60HZ
Charging time: 8-12 hours
Max speed: 45±2 km/h
Max range: About 55km

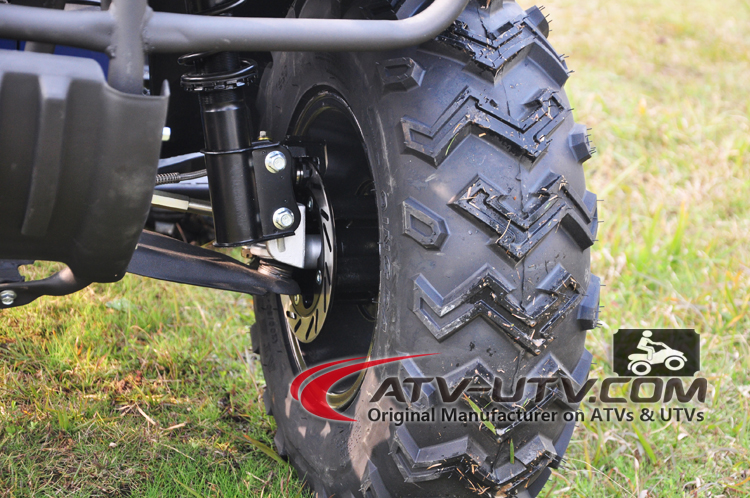

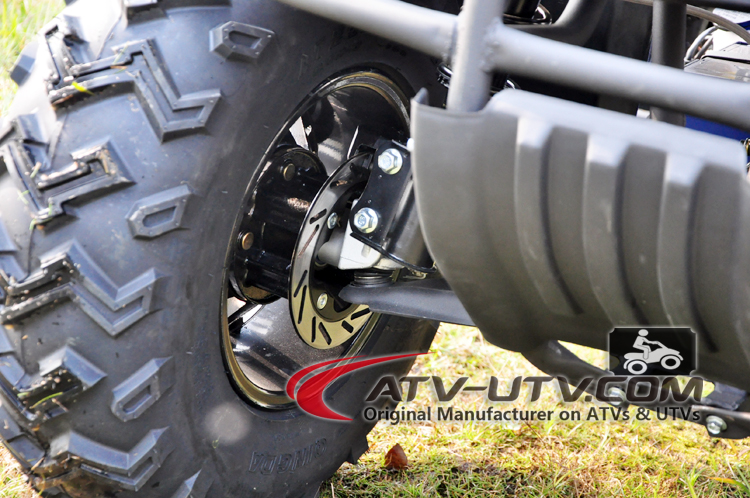

Brake: front: oil drum brake, rear: disc brake
Transmission: shaft drive transmission
Wheel size: Front: 25*8.5-12, Rear: 25*10-12
Max climbing capacity: 40 degrees
Front wheels track: 900mm
Rear wheels track: 880mm
Max load capacity: 180kgs
Wheelbase: 1180mm
Ground clearance: 220mm
Seat height: 900mm
Ingress protection: IP66
Front & Reverse gearshift
Iron wheel rim

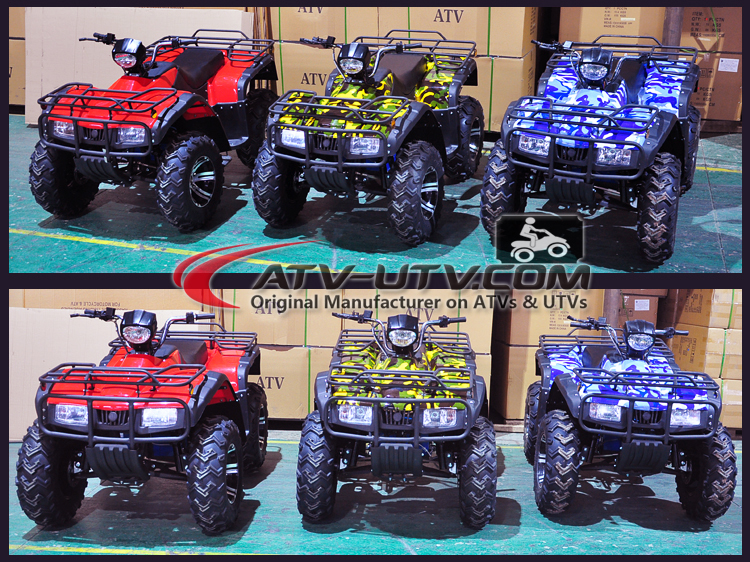

Color available: red, blue, black, yellow
Package: Iron cage with carton outside
Net weight: 263kgs/580lbs
Gross weight: 275kgs/605lbs
Carton size: 195x112x85cm/1pc
Container: 16pcs/20, 32pcs/40, 48pcs/40HQ

Video for 60V 2200W New Electric Big ATV with AC Motor EA2201:
