EEC Approved 200CC ATV with Reverse Gear Quad Bike 250cc Chain Drive and Shaft Drive can choose
EEC Approved 200CC ATV with Reverse Gear Quad Bike 250cc Chain Drive and Shaft Drive can choose
Item NO.: AT2008
Category: Gas ATV
Update:
6/25/2015 11:05:31 PM
Inquire
Print

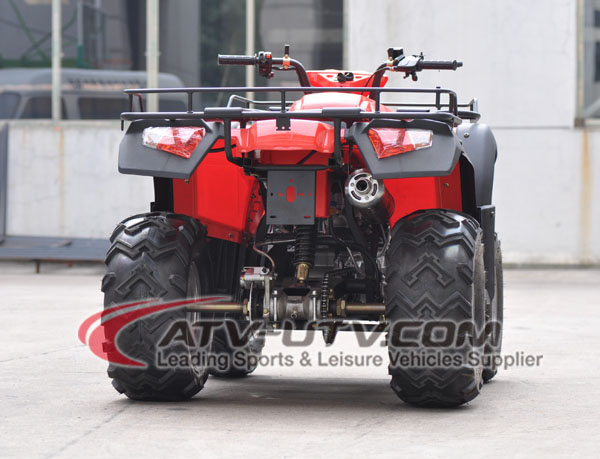

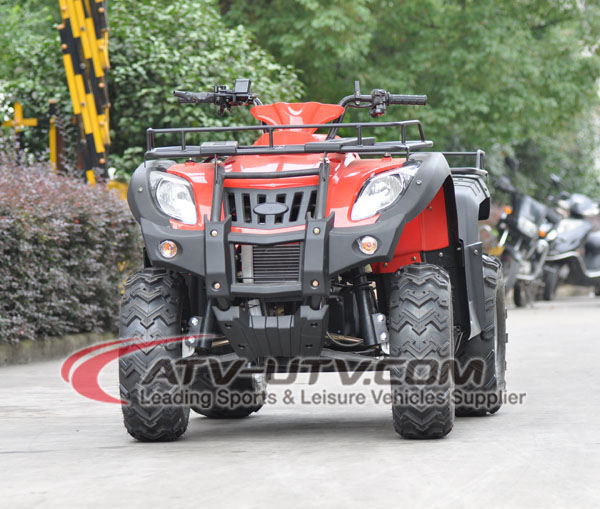

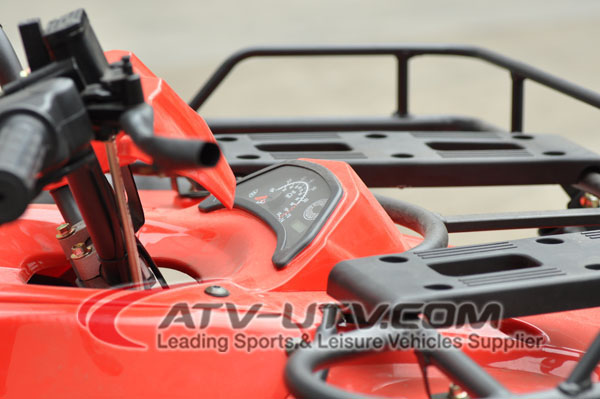

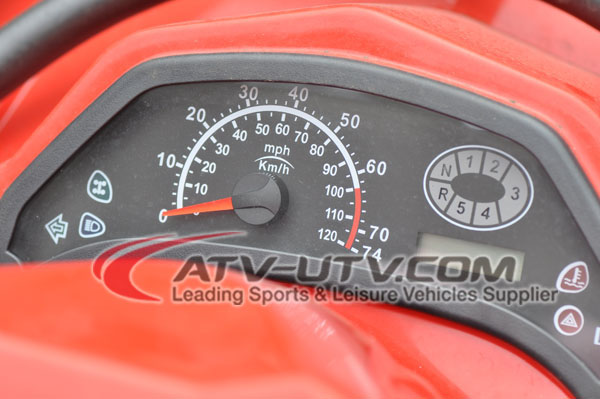

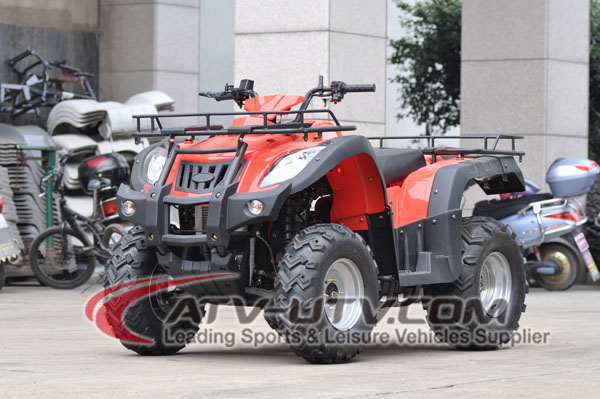

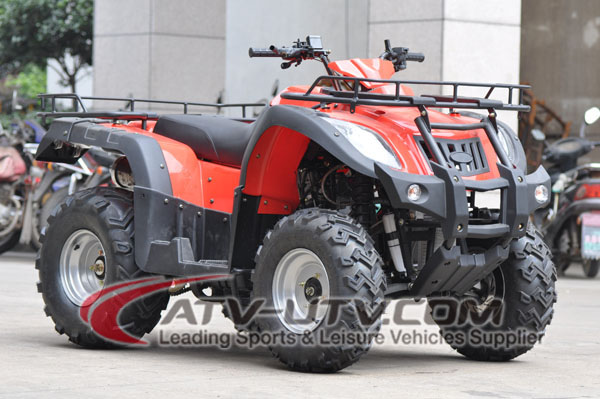

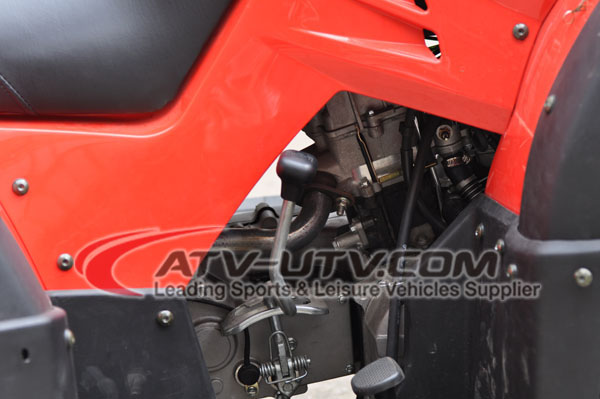

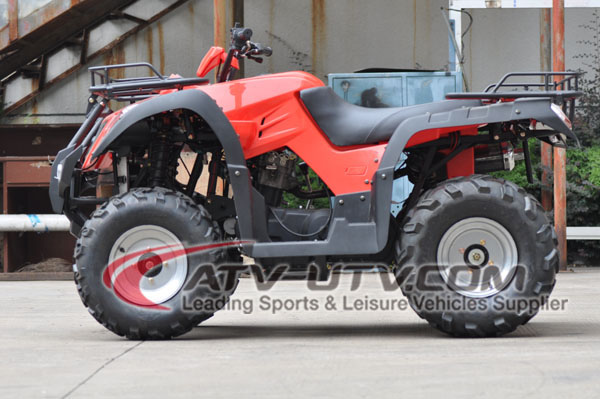

More Pictures:

EEC Approved 200CC ATV with Reverse Gear Quad Bike 250cc Chain Drive and Shaft Drive can choose



Product Discription:


EEC Approved 200CC ATV with Reverse Gear Quad Bike 250cc Chain Drive and Shaft Drive can choose



Wheel number: 4

Piston displacement: 200cc

Engine type: 4 storke

Max torque: 13.5Nm/5500rpm,17.5Nm/5000rpm

Max power: 10kw/7500rpm,11kw/7500rpm

Starting system: CDI electric start

Transmission: manual clutch,4-speed,reverse gear,chain/shaft,drive

Brake: Front/Rear: drum brake for shaft, Front/Rear: disck brake for chain

Battery: 12V,9AH

Front suspension details: double A x swing arm

Rear suspension details: mono shock swing arm

Wheel size: Front: 23x7-10  Rear: 22x10-10

Product size: 208x124x113cm

Wheel base: 116cm

Seat height from ground: 90cm

Ground clearance: 155mm

Load capacity: 165kgs

Fuel tank capacity: 11L

Package: Iron cage with carton outside

Net weight: 220kgs/484lbs

Gross weight: 240kgs/528lbs

Carton size: 194x109x86cm

Container: 24pcs/40ft,36pcs/40HQ
