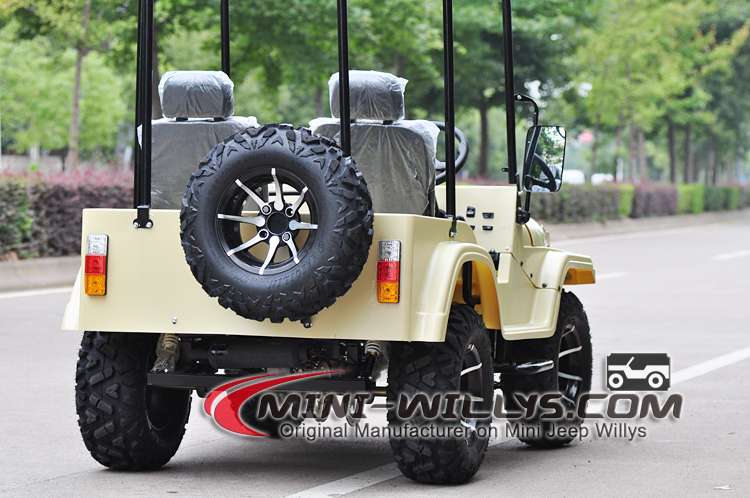

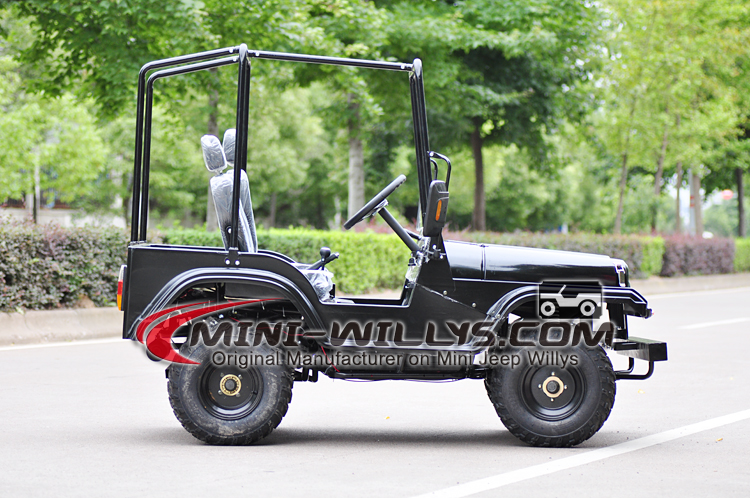

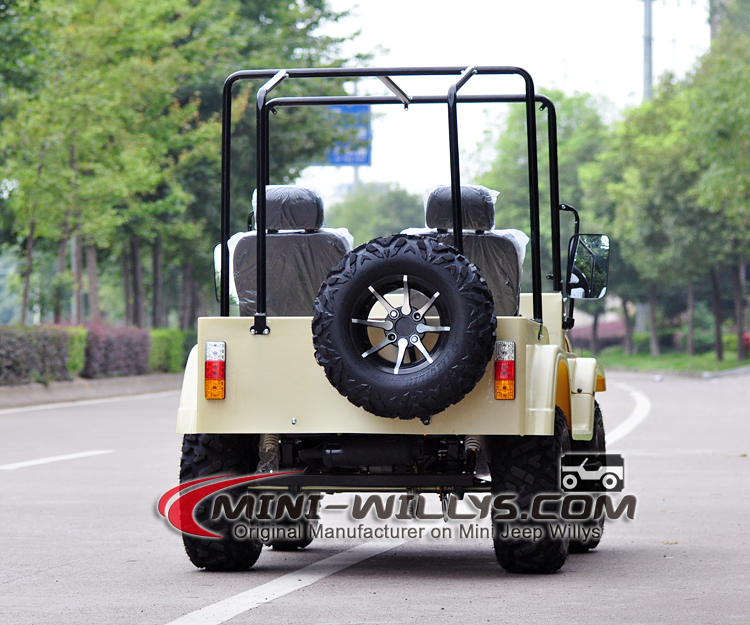

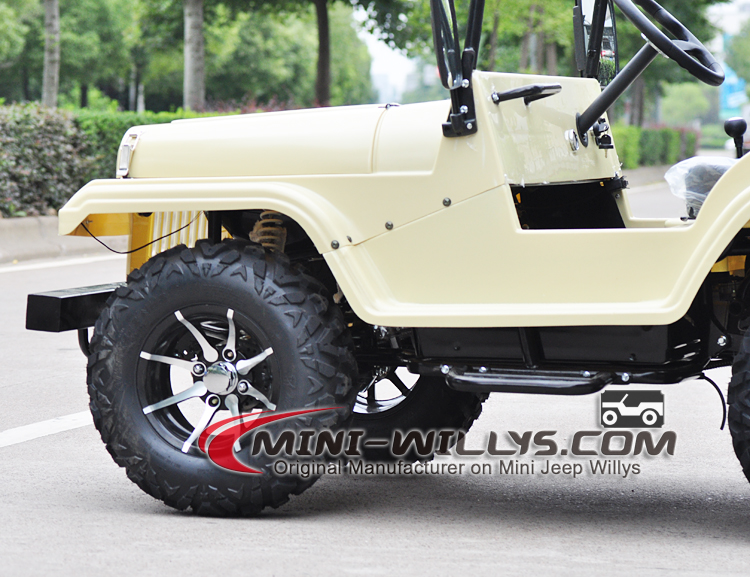

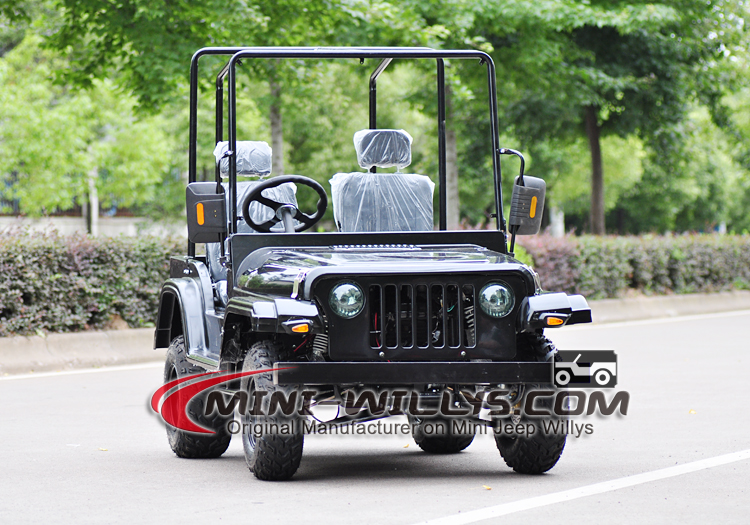

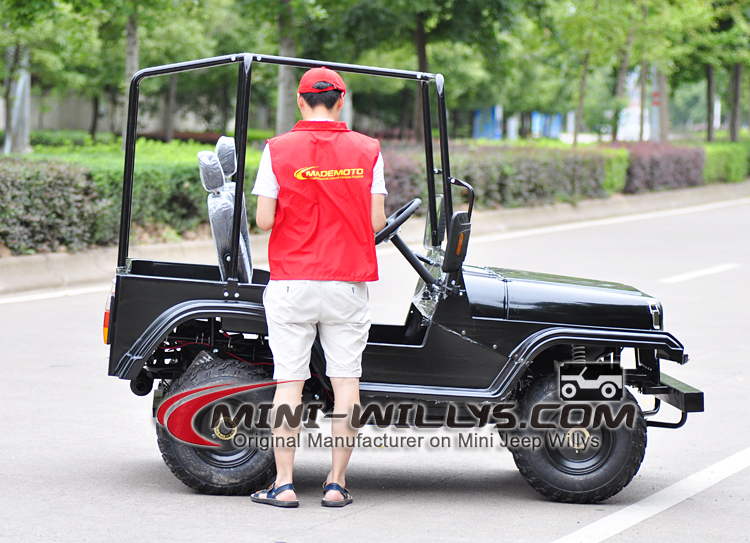

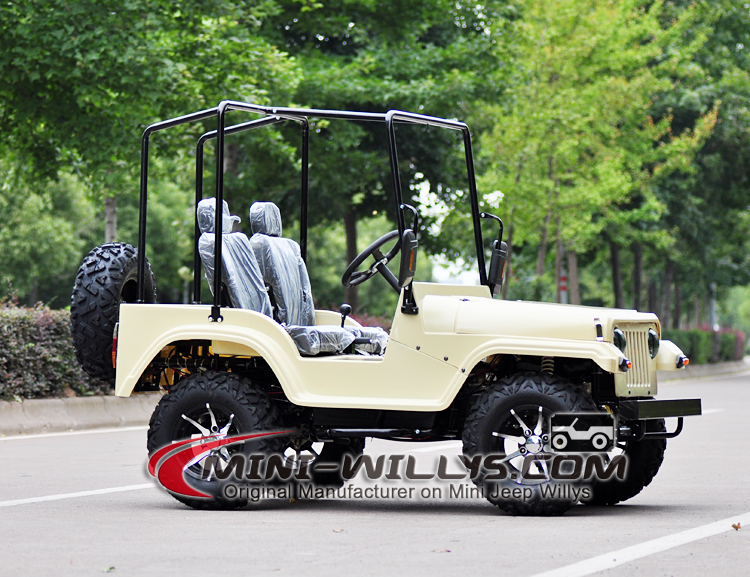

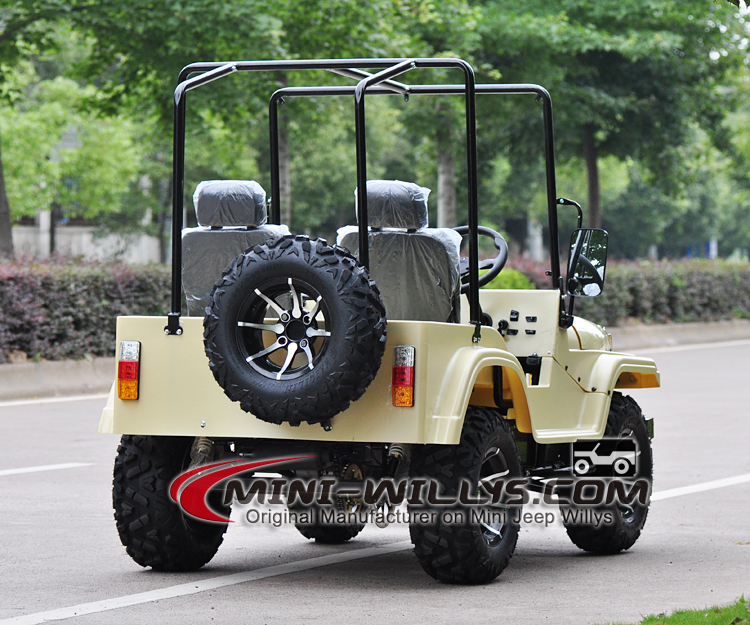

150cc/200cc ATV QUAD BIKE for Adult with big size 2016 NEW
150cc/200cc ATV QUAD BIKE for Adult with big size 2016 NEW
Item NO.: JW1501
Category: Gas ATV
Update:
11/3/2016 10:53:18 PM
Inquire
Print

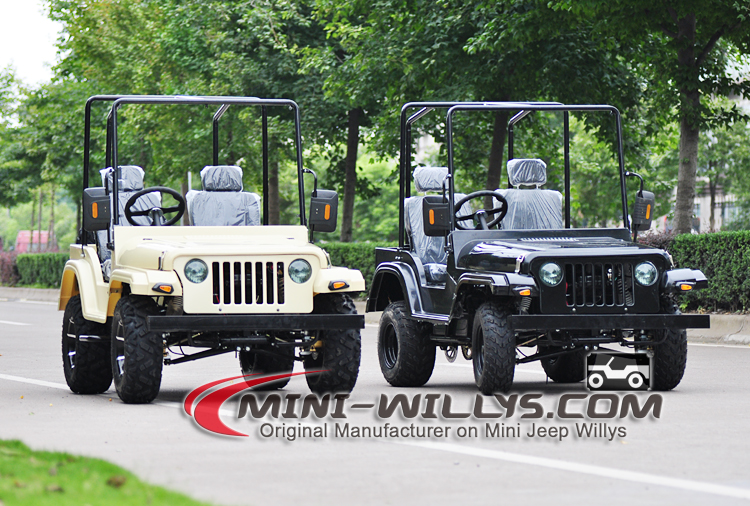

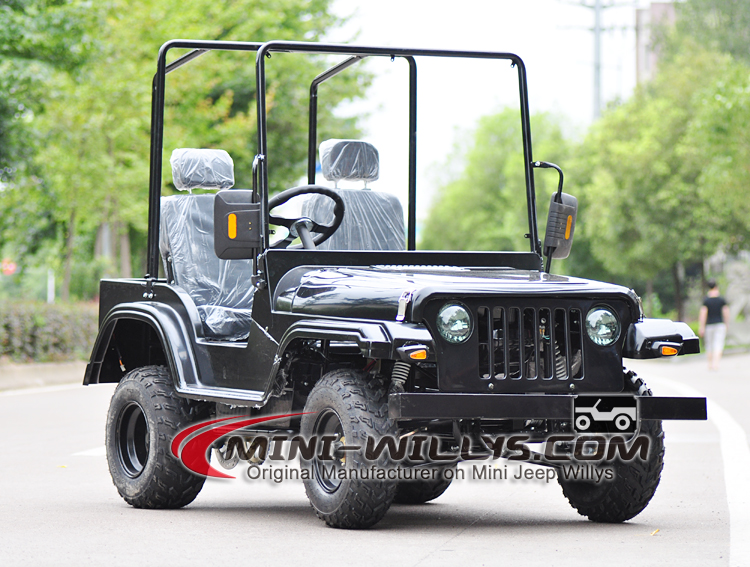

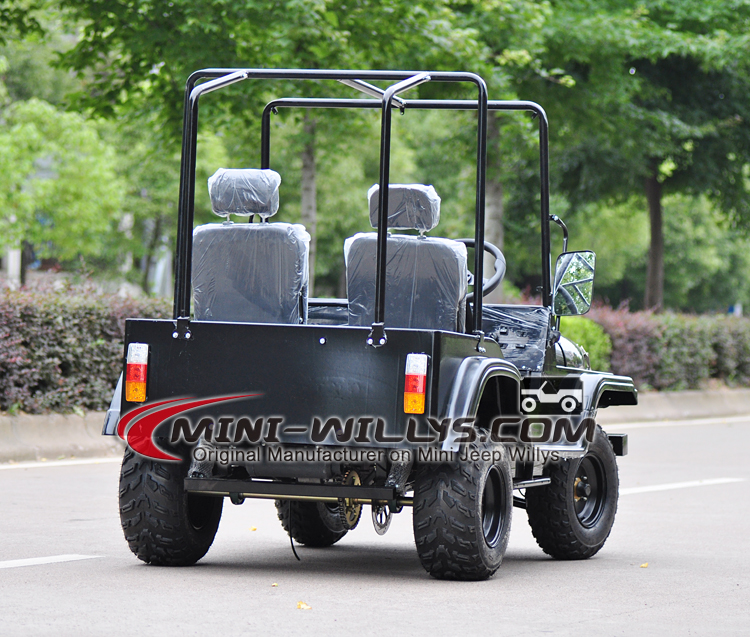

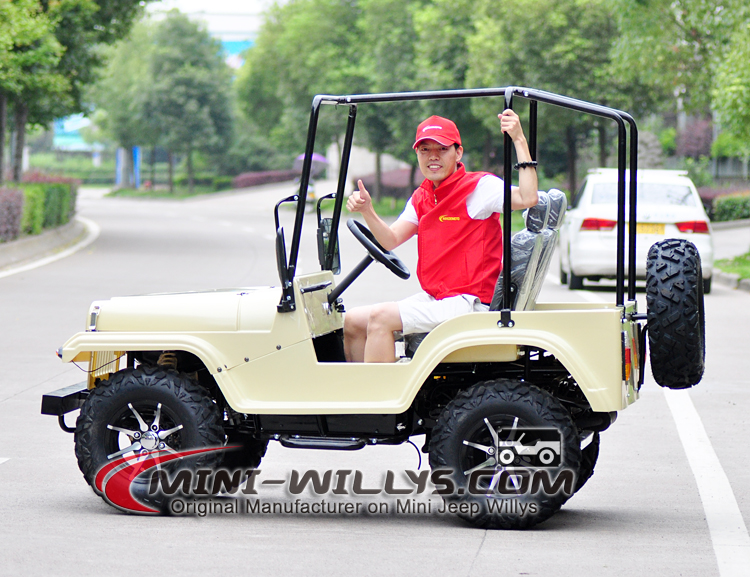

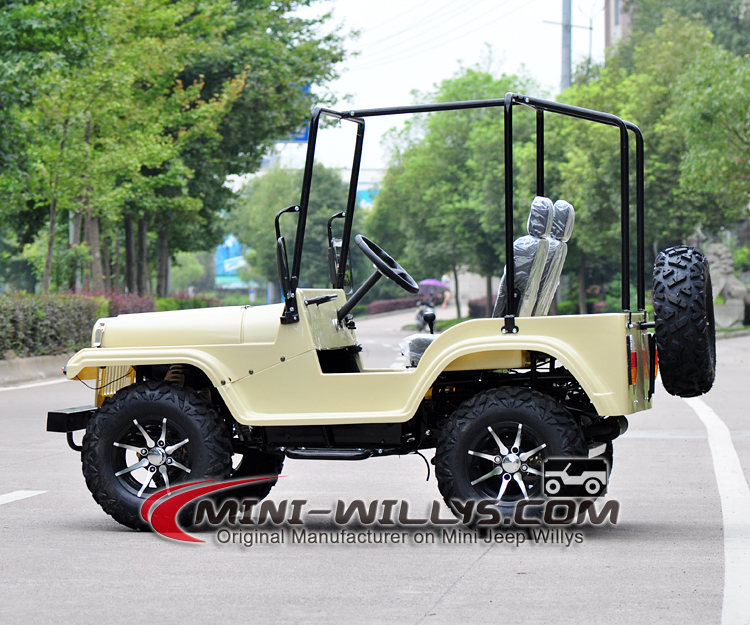

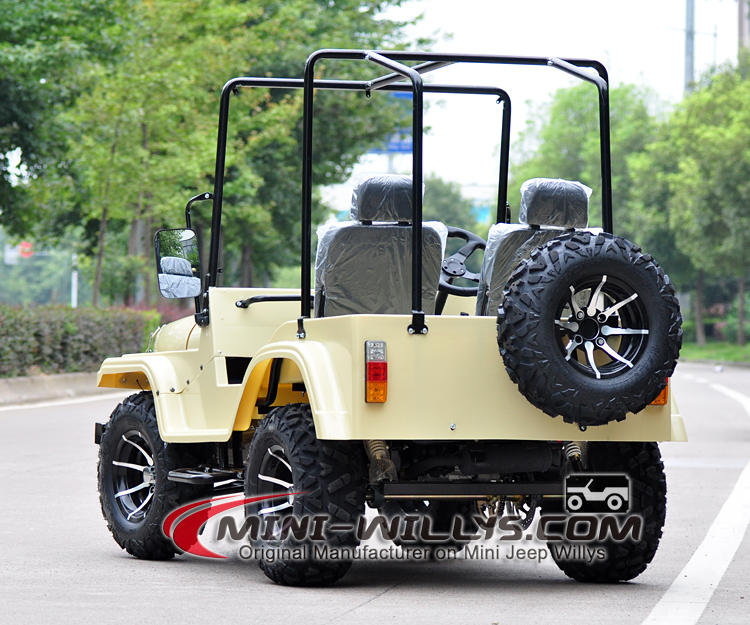

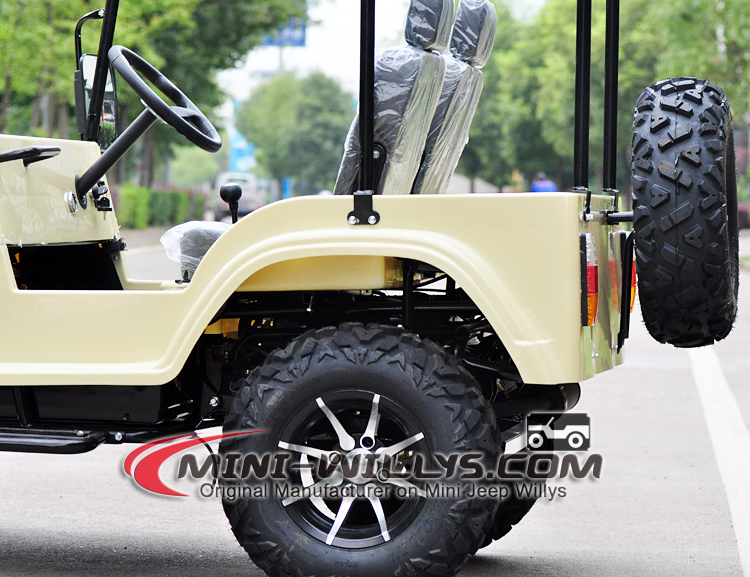

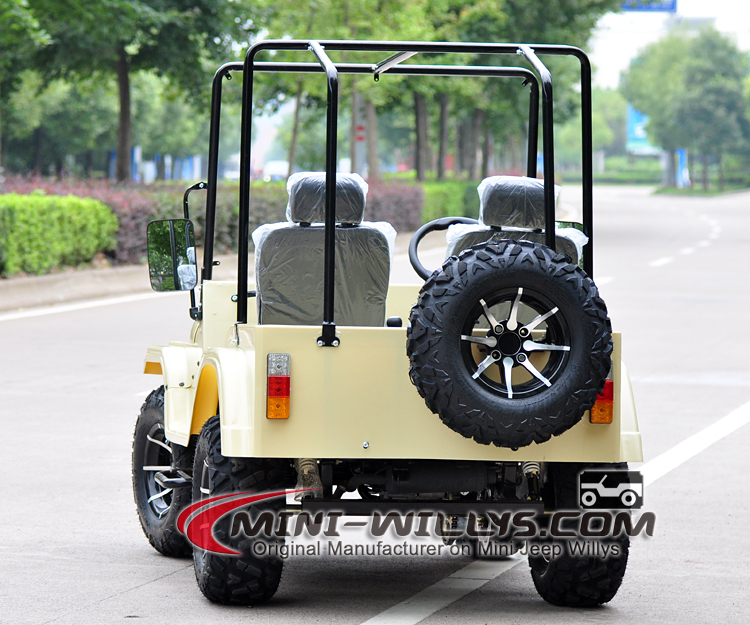

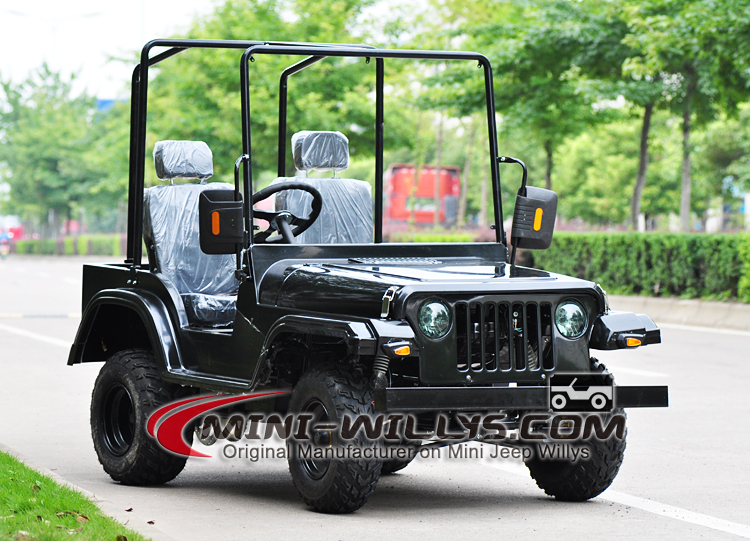

More Pictures:

150cc/200cc ATV QUAD BIKE for Adult with big size 2016 NEW



Product Discription:


ATV QUAD BIKE factory

150cc/200cc ATV QUAD BIKE for Adult with big size 2016 NEW

Special Features:
* Much larger size for adult
* 200CC GY6 Engine, Auto Clutch

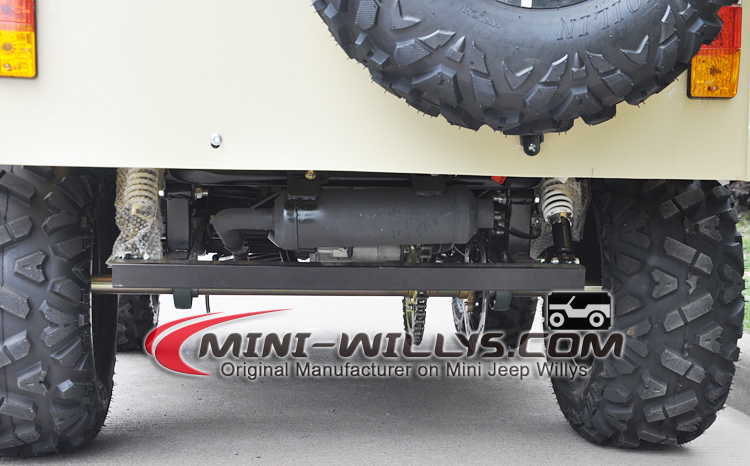

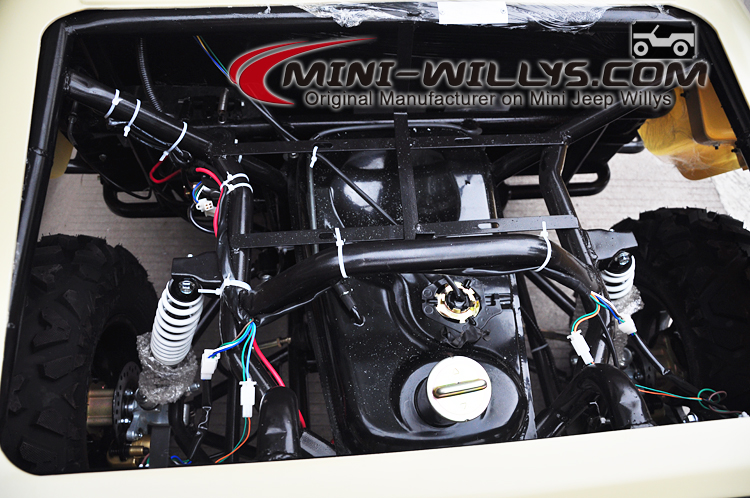

* Rear Engine, Rear Drive(RR layout)

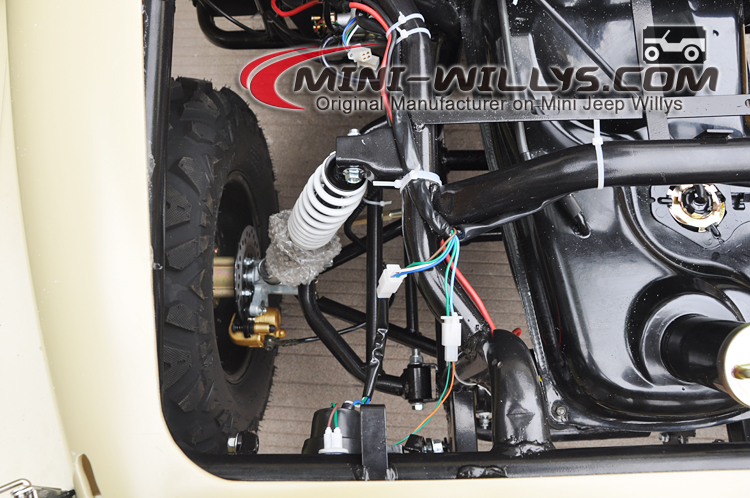

* 4 Independent Shock Suspensions
* Big 12 Liter Fuel Tank

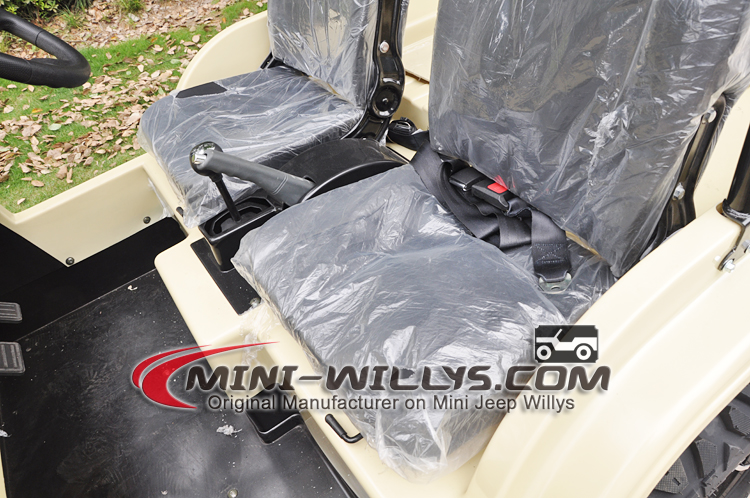

* Easy Folding Seats
* MP3 Player & Radio is optional
* Adjustable seat
Photo is just for your reference, basic price is with Left-hand drive, Right-hand drive is also can be made but mini order is 8pcs.
Wheel number: 4
Basic price Piston displacement: 150cc
Dimension: 2360x1300x1600mm
Engine type: 4 stroke, Air Cooled, GY6, Single Cyclinder, Fully-automatic with reverse
Also can be 200cc GY6 with Oil Cooled

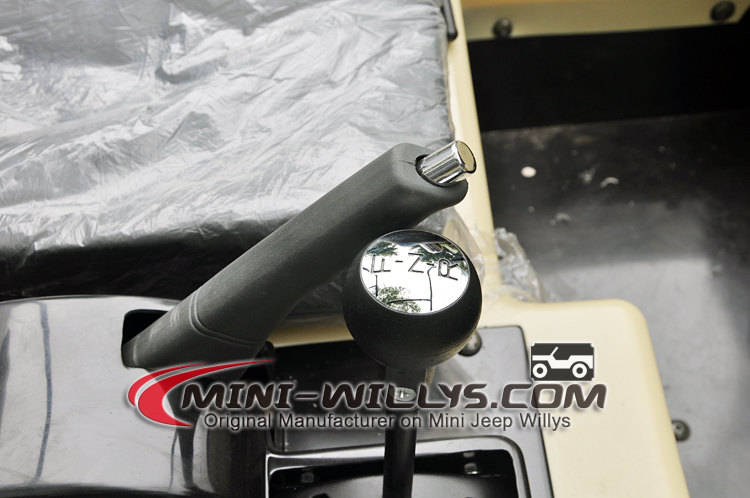

forward, neutral and reverse gears
Bore&Stroke: 150cc: 57.4x57.8mm; 200cc: 61x57.8mm
Compression Ratio: 9.2:1
Carburetor: Vacuum Diaphragm
Max. Power Output: 150cc: 7.0kW/(7500r/min); 200cc: 7.6kW/(7000r/min)
Max. Torque: 150cc: 8.3N.m/(6000r/min); 200cc: 10.2N.m/(5000r/min)
Ignition: CDI
Max. Speed: 80 km/h

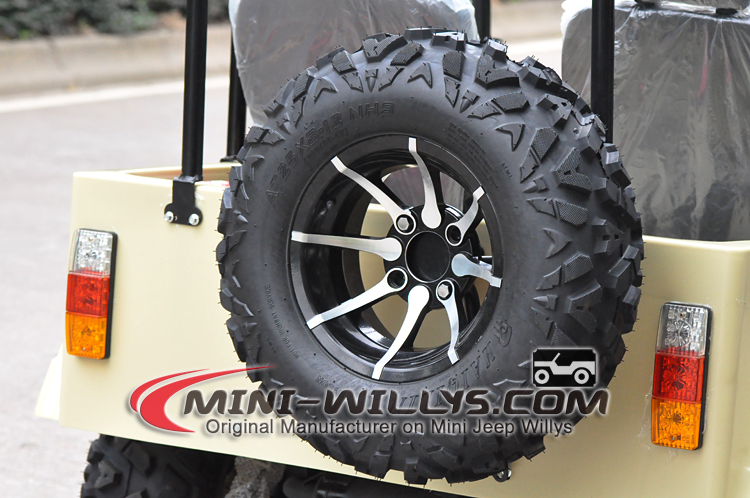

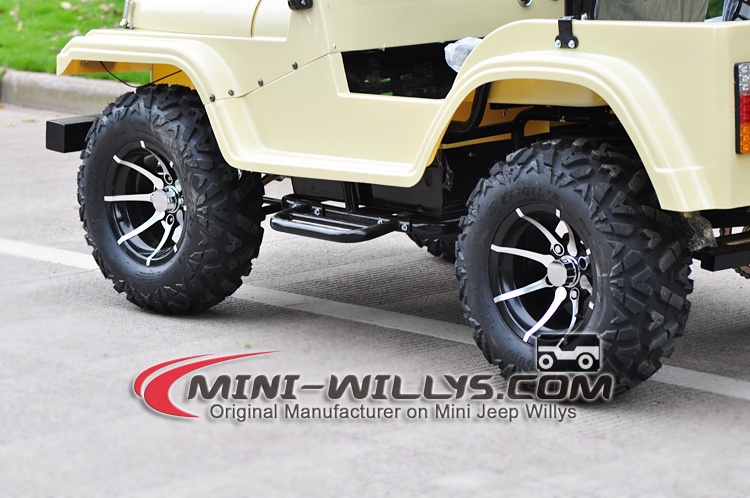

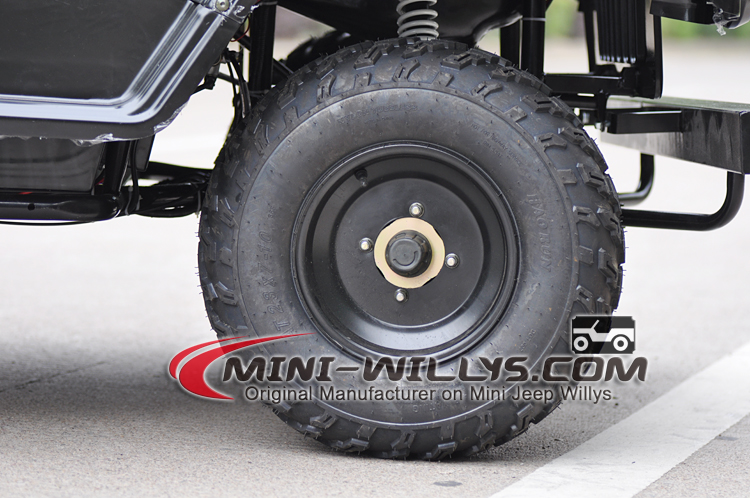

Wheel size: Front: 19*7-8, Rear: 18*9.50-8
Starter: Electric start
Battery: 12V,9AH
Clutch: CVT
Transmission: Chain Drive
Fuel Tank Capacity: 12L

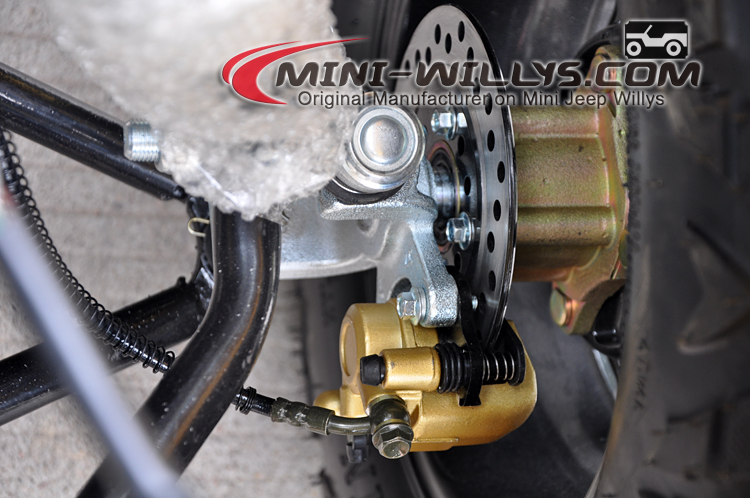

Brake Front: Hydraulic disc brakes
Brake Rear: Hydraulic disc brakes
Ground Clearance: 180mm
Package: Iron cage with carton outside
Net Weight: 178kgs/391lbs
Gross Weight: 202kgs/445lbs
Carton size: 2300x1300x760mm
Container: 8pcs/20, 27pcs/40’HQ

2016 New Adult Big Size ATV QUAD BIKE JW1501

We were starting to produce ATV QUAD BIKE for kids since 2012. But we have many buyers said why no adult size. Based on marketing request, we invested big money on the new big size ATV QUAD BIKE frame to fit Adult ATV QUAD BIKE requests. 200CC GY6 auto clutch engine,2 big seats, rear set engine on rear drive. Contact us now for more details.
