 Homepage >> Product Detail
Single Seat Racing Go Kart with air cooling 168CC Engine
Single Seat Racing Go Kart with air cooling 168CC Engine
Item NO.: GC1687
Category: Racing Karting
6/27/2015 3:51:36 AM

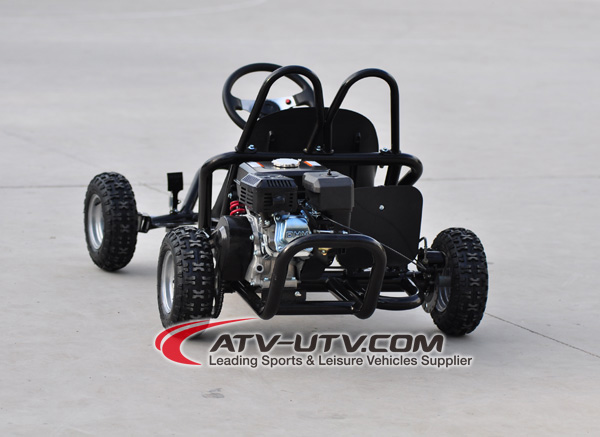

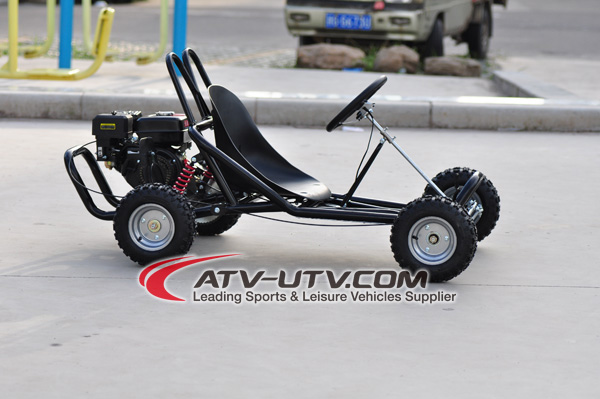

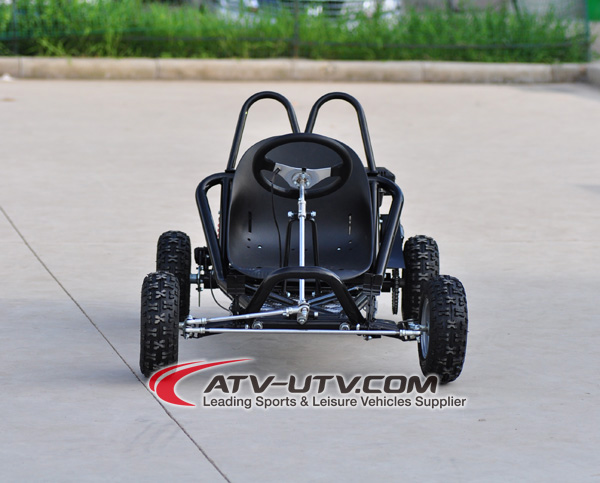

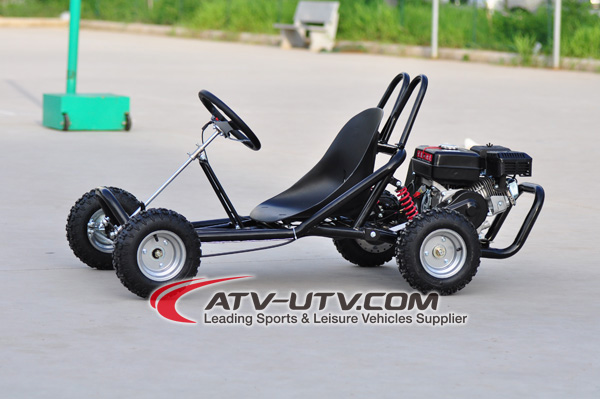

More Pictures:

Single Seat Racing Go Kart with air cooling 168CC Engine

Product Discription:
 Go Karts
Single Seat Racing Go-Kart with air cooling 168CC Engine
Key Specifications:
1. Wheel number: 4
2. Outer dimensions: 1800x980x760mm
3. Piston displacement: 168cc
4. Fuel tank: 4.5 liters
5. Fuel type: 93#
6. Engine type: single cylinder, air-cooling
7. Starting system: manual/pull start
8. Power transmission: chain drive
9. Ignition method: CDI
10. Max power: 10.0kw/7,500rpm
11. Torque: 13.5N.m/6,500rpm

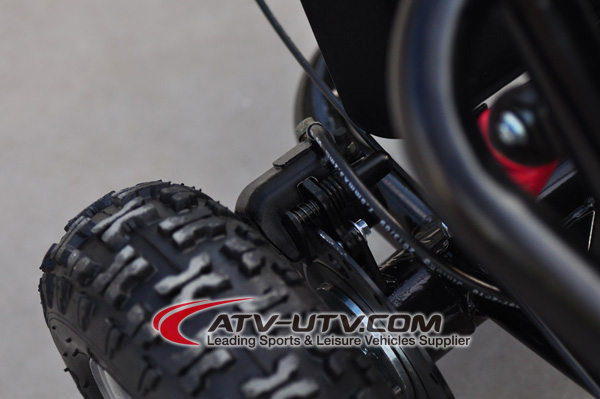

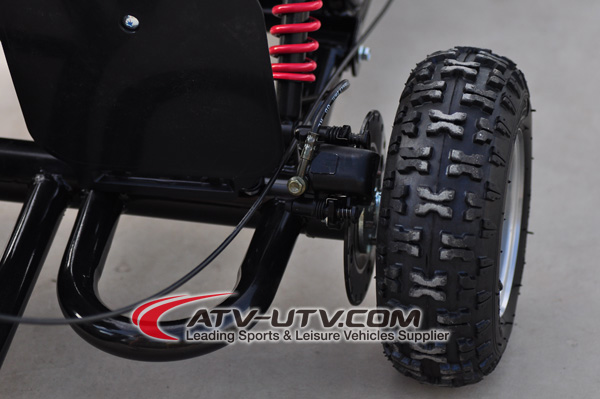

12. Brakes: rear disc brakes
13. Wheel size: front: 13x5-6, rear: 13x5-6
14. Minimum ground clearance: 105mm
15. Max loading: 100kg/220lbs
16. Max speed: >70km/h
17. Climbing ability: <20 degrees
18. Wheelbase: 1160mm
19. Seat height: 250mm
Package: Carton Packing
20. Net weight: 70kgs/154lbs
21. Gross weight: 82kgs/180lbs
22. Carton size: 185x100x70cm/1pc
23. Container: 21pcs/20’, 45pcs/40’, 52pcs/40’HQ
Special Features:
 Chain Driving power Transmission
 CDI Ignition mode Powerful water cooling engine
