125CC Double Seat Racing 4 Stroke Go-Kart for kids with air cooling 110CC Engine
125CC Double Seat Racing 4 Stroke Go-Kart for kids with air cooling 110CC Engine
Item NO.: GC1102
Category: Off-Road Go Kart
Update:
6/28/2015 10:05:33 PM
Inquire
Print

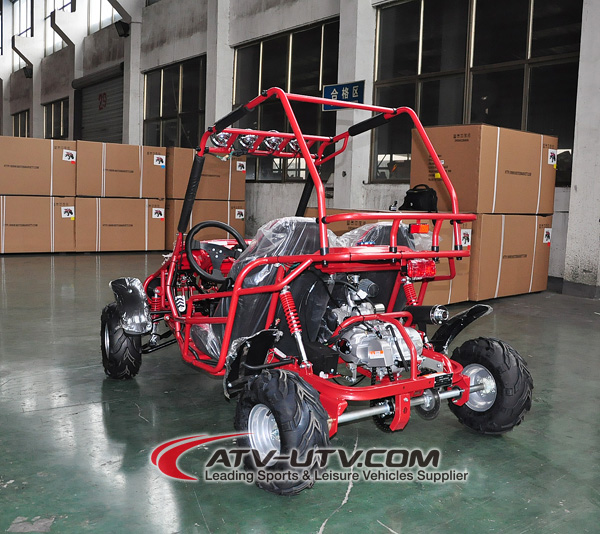

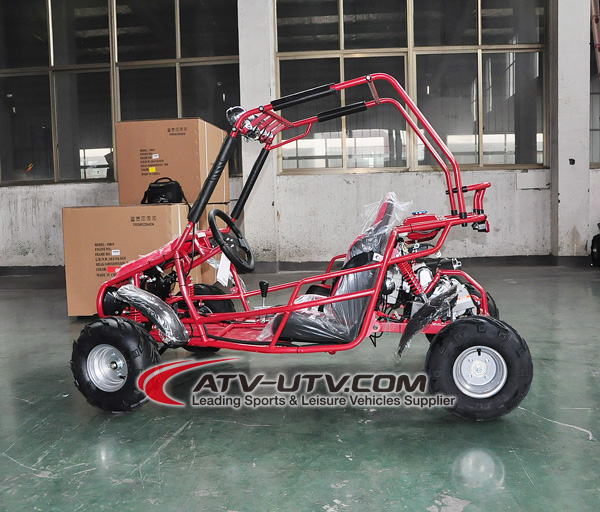

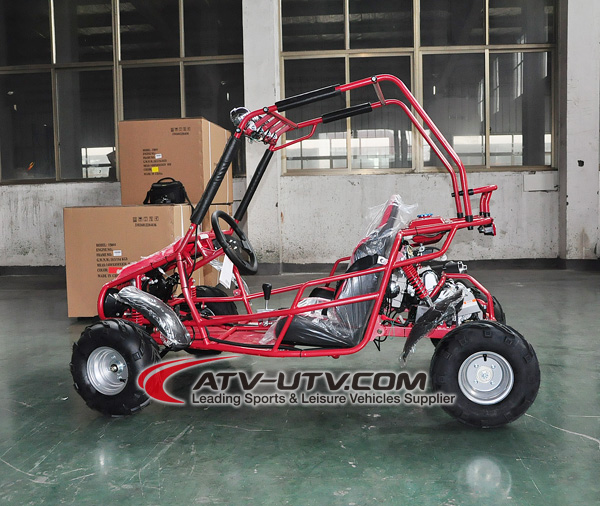

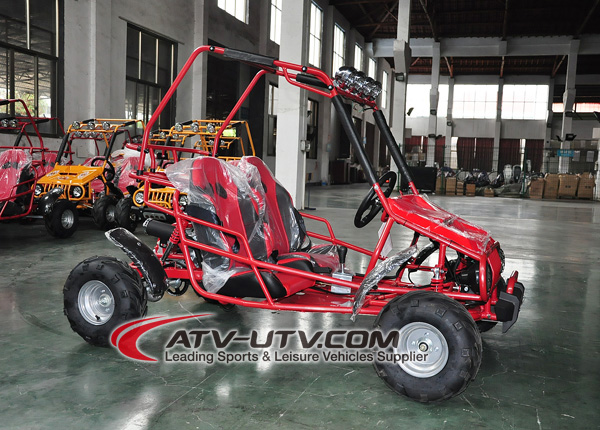

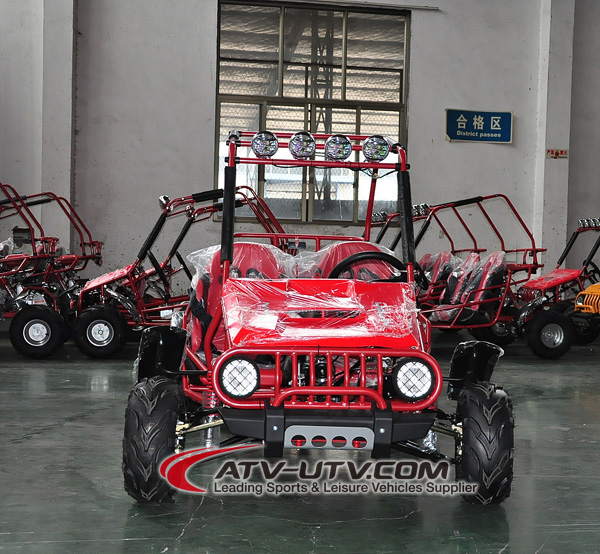

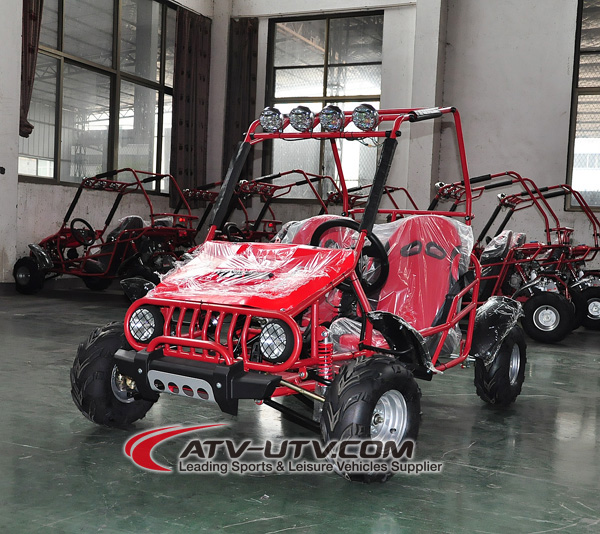

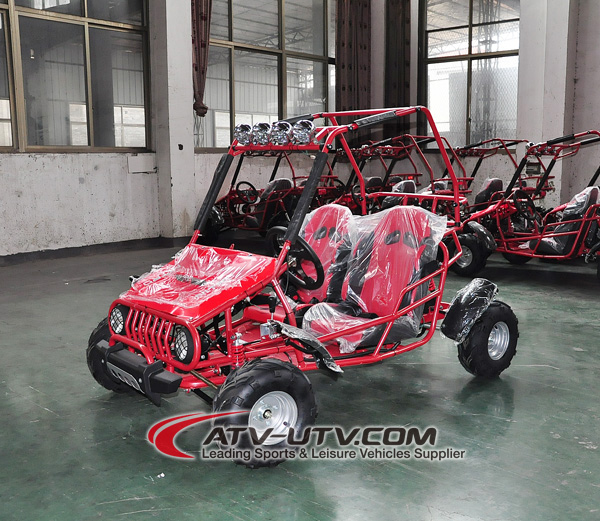

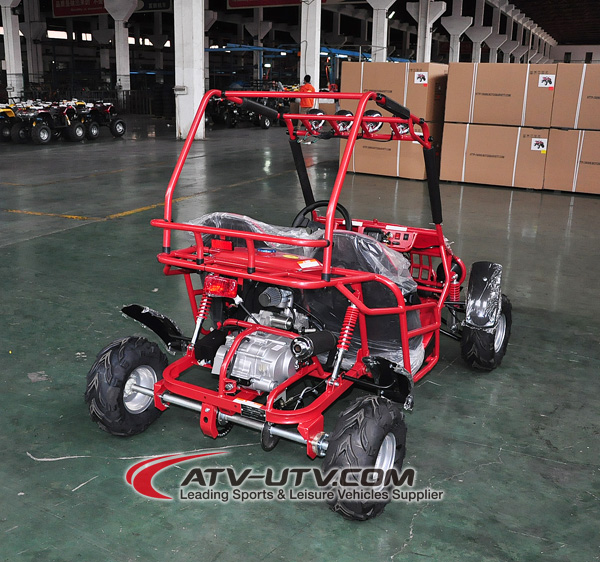

More Pictures:

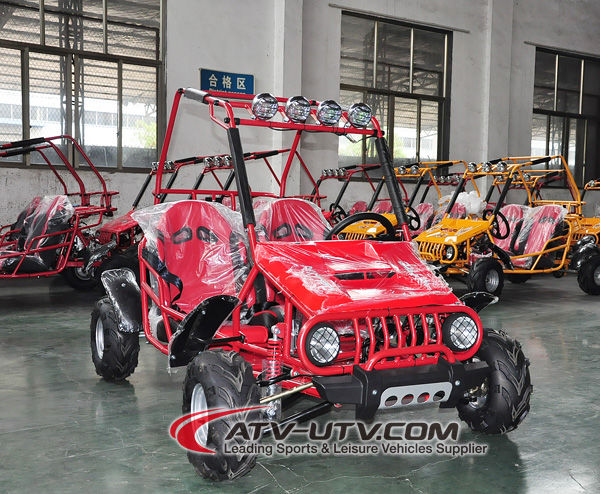

125CC Double Seat Racing 4 Stroke Go-Kart for kids with air cooling 110CC Engine



Product Discription:


Go Karts

Can be made with 125CC Engine
Double Seat Racing 4 Stroke Go-Kart for kids with air cooling 110CC Engine
GC1102-A
Key Specifications:
1. Wheel number: 4
2. Outer dimensions: 1980*1250*1370
3. Piston displacement: 110cc
4. Fuel tank: 4.7(L)
5. Engine type: 110cc 4 stroke,1-cylinder, air-cooling
6. Starting system:electric start
7. Power transmission: chain drive
8. Ignition method: CDI
9. Brakes:Front/Rear hydraulic brake
10. Wheel size: Front/Rear: 16*8-7
11. Max loading: 100(kg)
12. Max speed: 45(Km/h)
13. Seat height:300mm
14. Color:yellow,black,red,blue
15. Max Power:5.2/85000(kw/rpm)
16. Max Torque:7.2/6000(Nm/rpm)
17. Lubrication:Pressure and Splash
18. Compression Ratio:9.0:1
19. Transmission:automatic with reverse inside
20. Battery:12V6.5Ah
21. Wheel Base:1460(mm)
22. Mini Ground Clearance:120(mm)
Package: Carton Packing
23. Net weight:157(kgs)
24. Gross weight: 177(kgs)
25. Carton size:1805*1135*620mm
26. Container:18pcs/20’,52pcs/40’HQ

GC1102-B
Key Specifications:
27. Wheel number: 4
28. Outer dimensions: 1980*1250*1370
29. Piston displacement: 125cc
30. Fuel tank: 4.7(L)
31. Engine type: 110cc 4 stroke,1-cylinder, air-cooling
32. Starting system:electric start
33. Power transmission: chain drive
34. Ignition method: CDI
35. Brakes:Front/Rear hydraulic brake
36. Wheel size: Front/Rear: 16*8-7
37. Max loading: 100(kg)
38. Max speed: 45(Km/h)
39. Seat height:300mm
40. Color:yellow,black,red,blue
41. Max Power:5.2/85000(kw/rpm)
42. Max Torque:7.2/6000(Nm/rpm)
43. Lubrication:Pressure and Splash
44. Compression Ratio:9.0:1
45. Transmission:automatic with reverse inside
46. Battery:12V6.5Ah
47. Wheel Base:1460(mm)
48. Mini Ground Clearance:120(mm)
Package: Carton Packing
49. Net weight:157(kgs)
50. Gross weight: 177(kgs)
51. Carton size:1805*1135*620mm
52. Container:18pcs/20’,52pcs/40’HQ

http://youtu.be/ZagFhw1qZTU
