150CC/200CC UTV Farm ATV
150CC/200CC UTV Farm ATV
Item NO.: UT2001
Category: UTV
Update:
5/13/2016 4:17:51 AM
Inquire
Print
More Pictures:

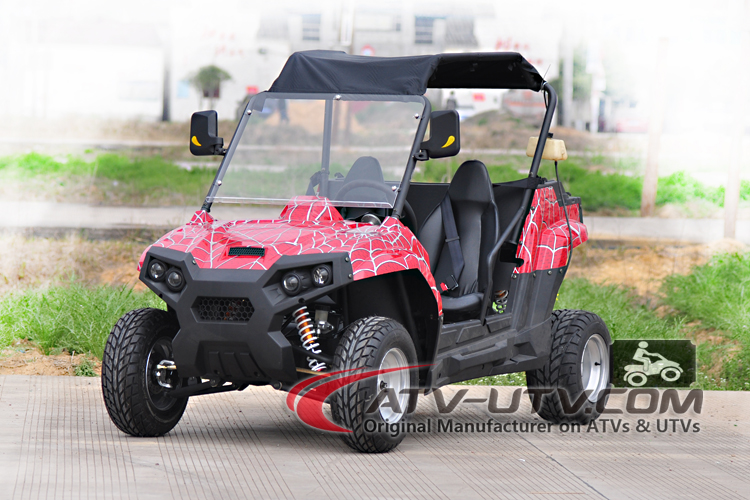

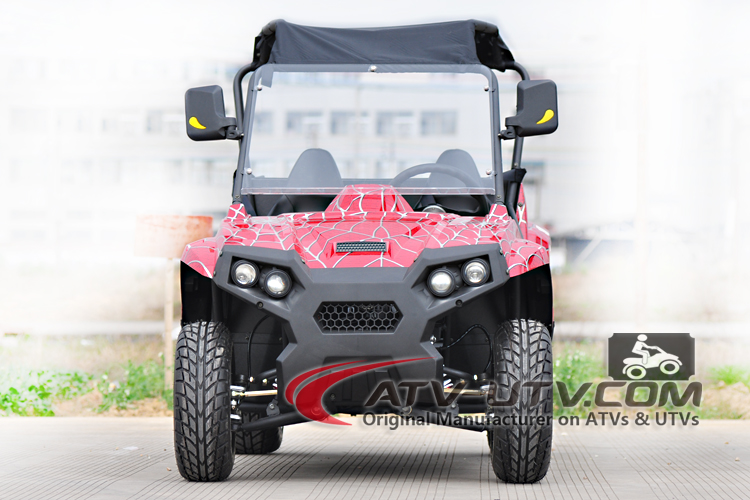

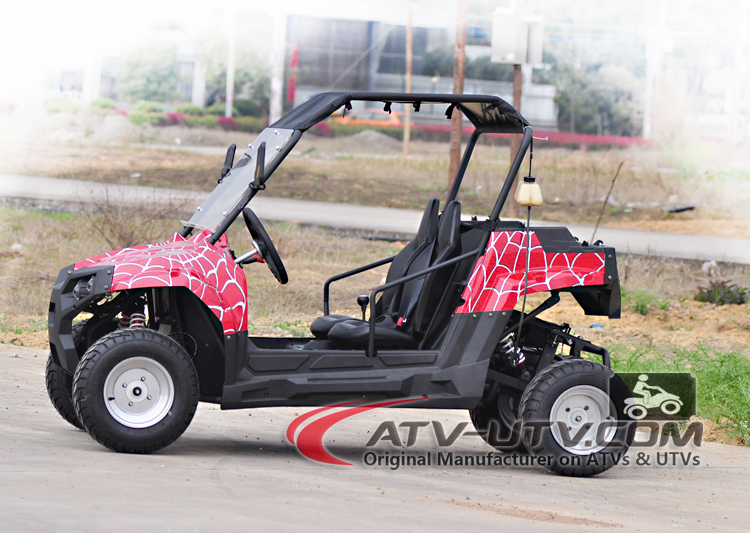

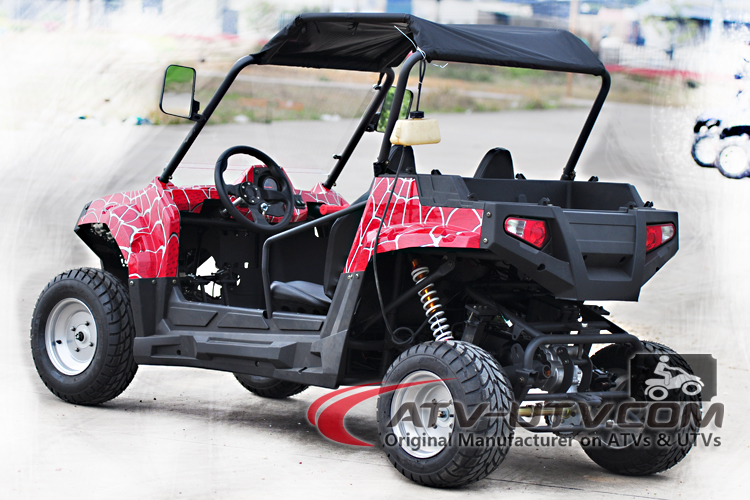

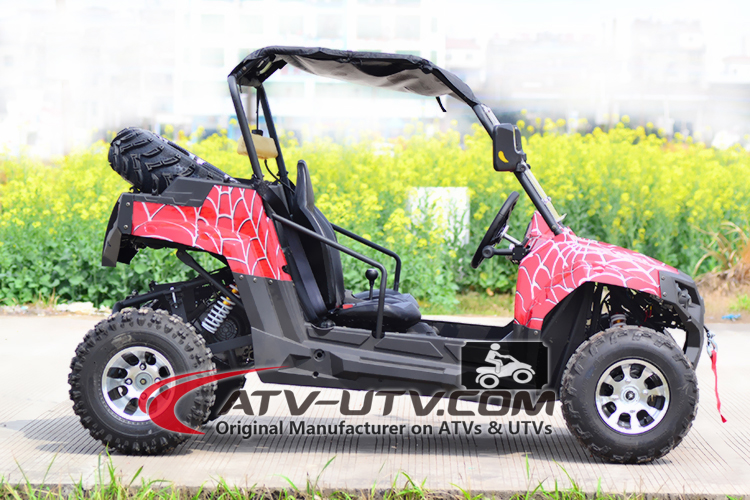

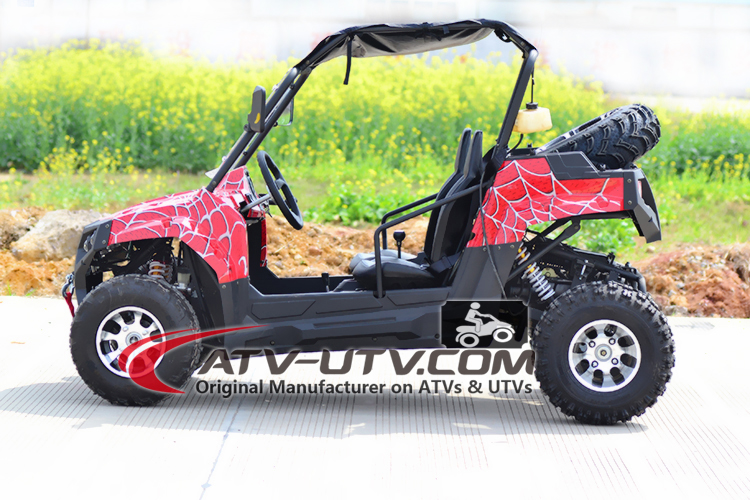

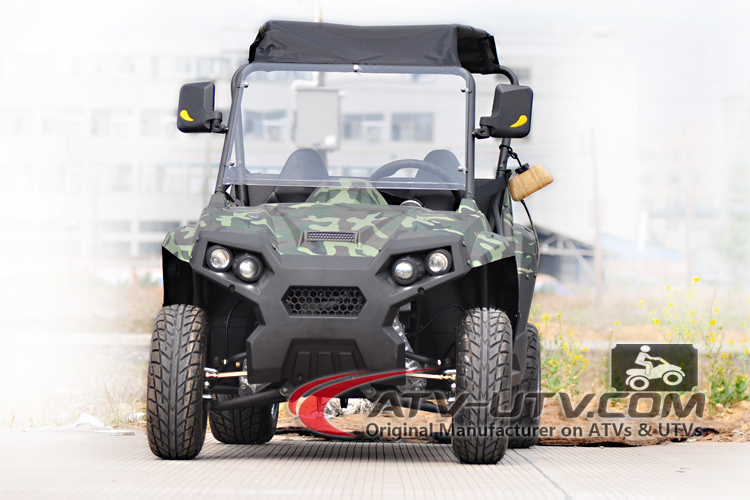

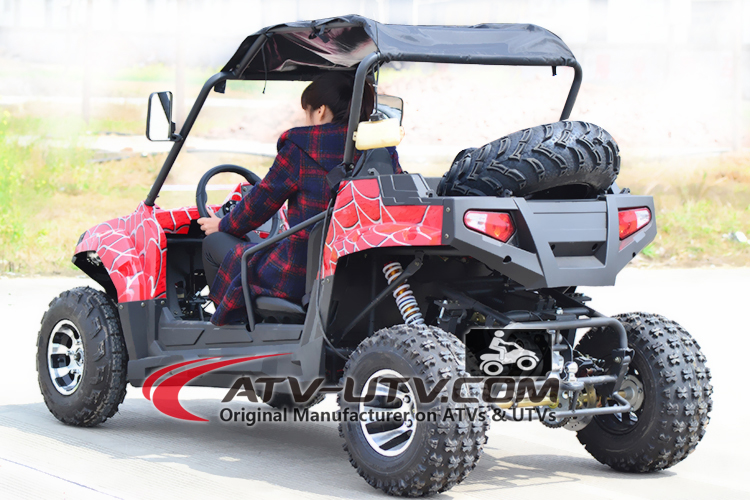

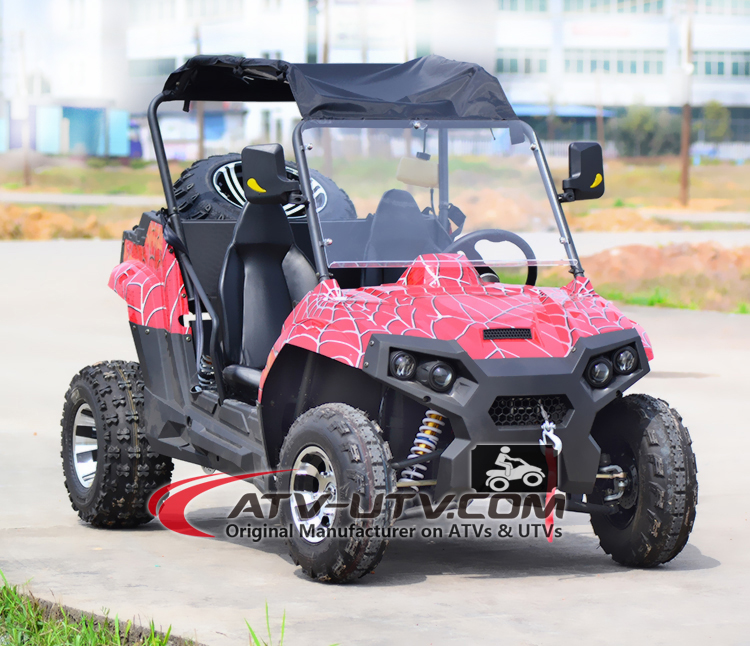

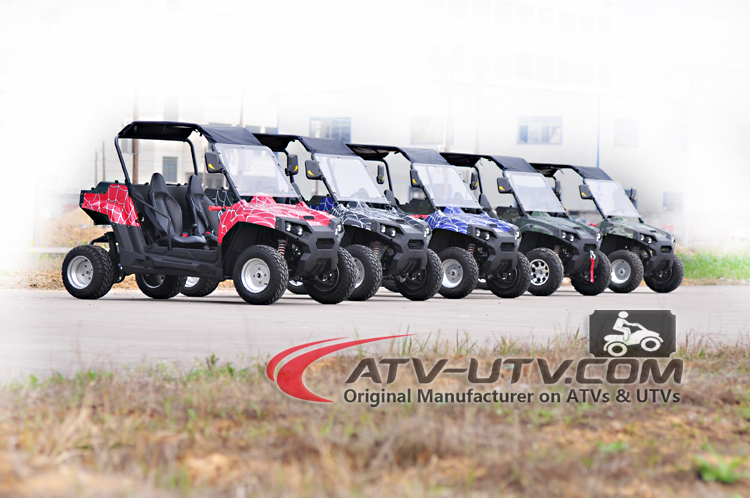

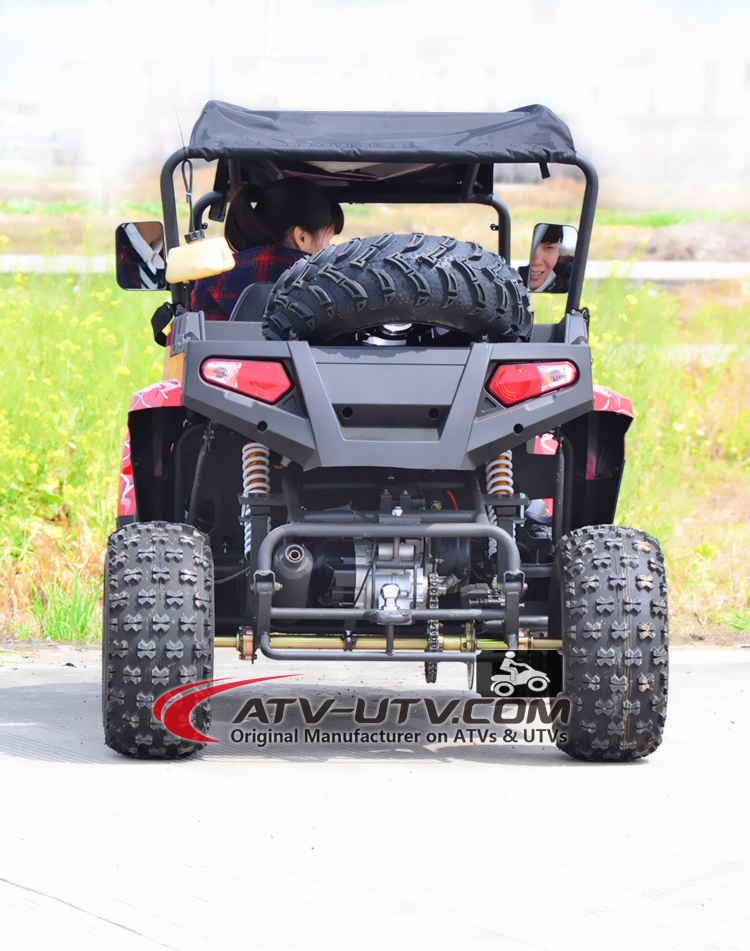

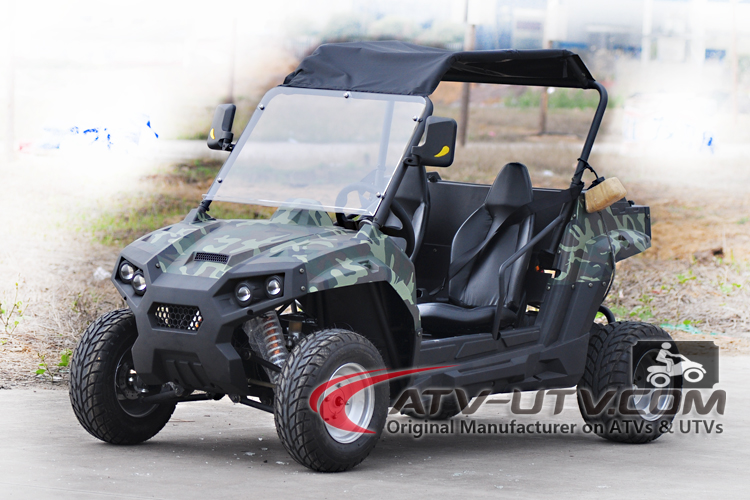

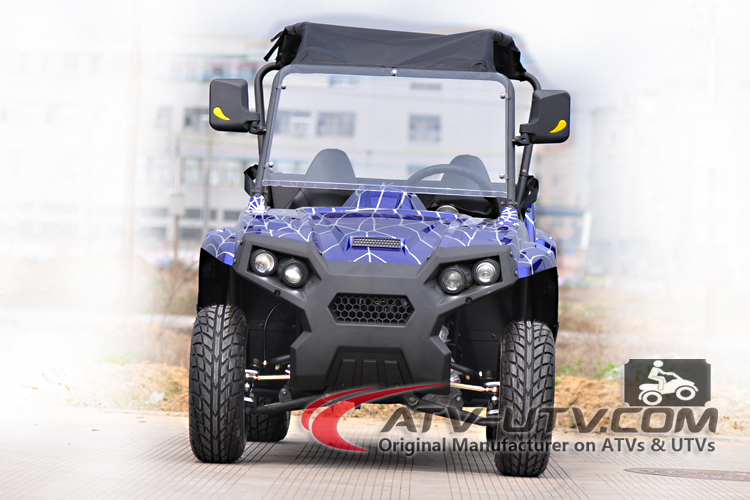

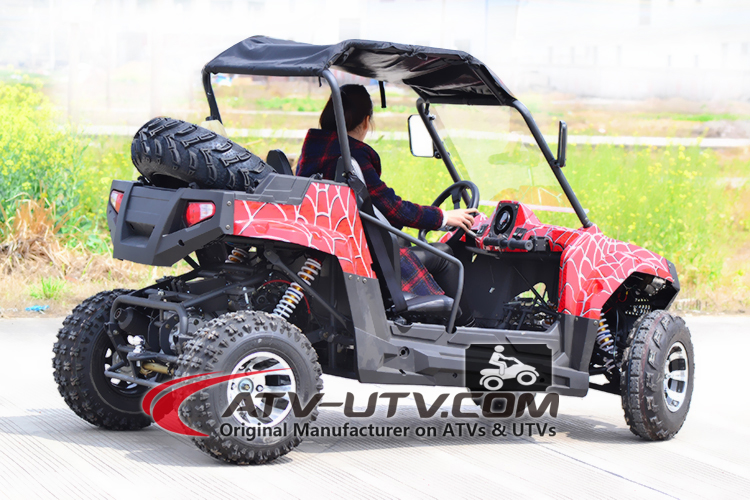

150CC/200CC UTV Farm ATV



Product Discription:


150-200CC UTV UT2001(Gas & Electric Version) Display

Gas engine available on 150cc and 200cc, the Utility Vehicle model UT2001 is also available on electric version. For more details, please e-mail us to sales@ATV-UTV.com.






Special Features:
* 150cc/200cc optional

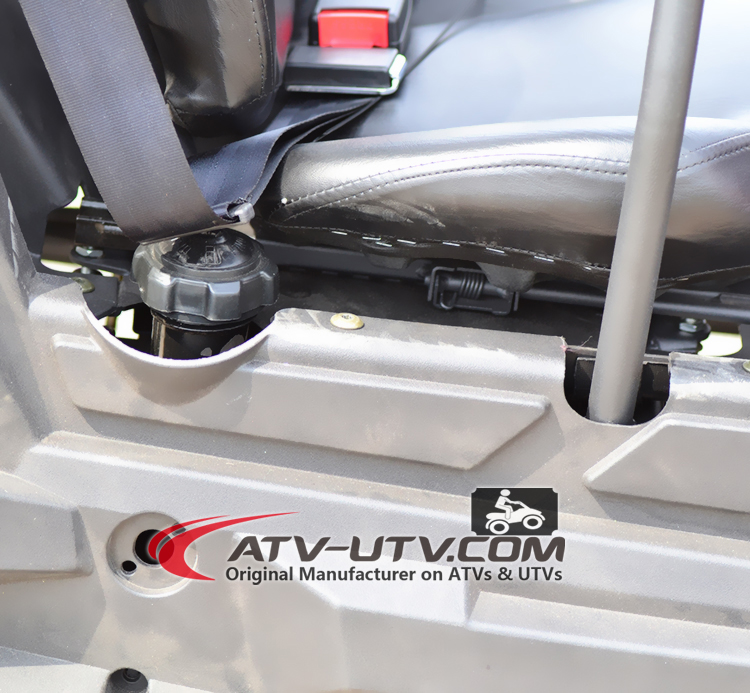

* Safty belt include
* Rearview Mirror: Include
* Fabric roof: Include
* With Two soft seat

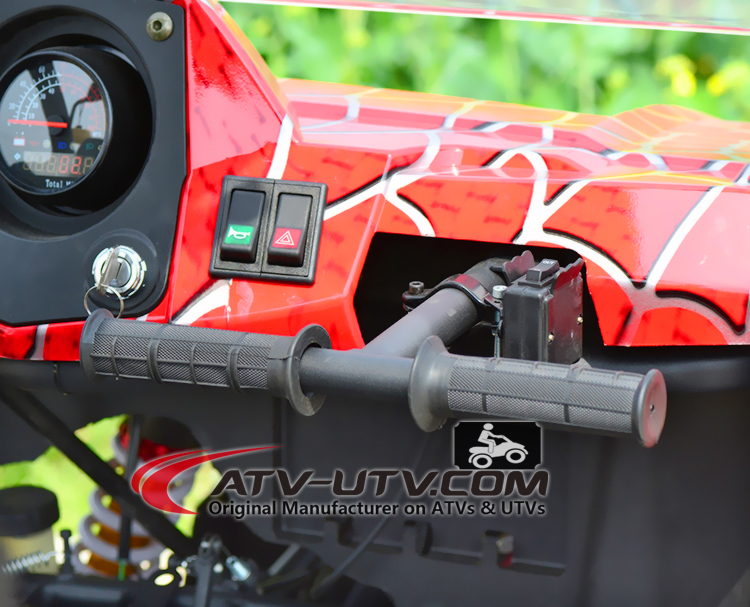

* Special safty handle bar for passanger seat
* With Handbrake for park

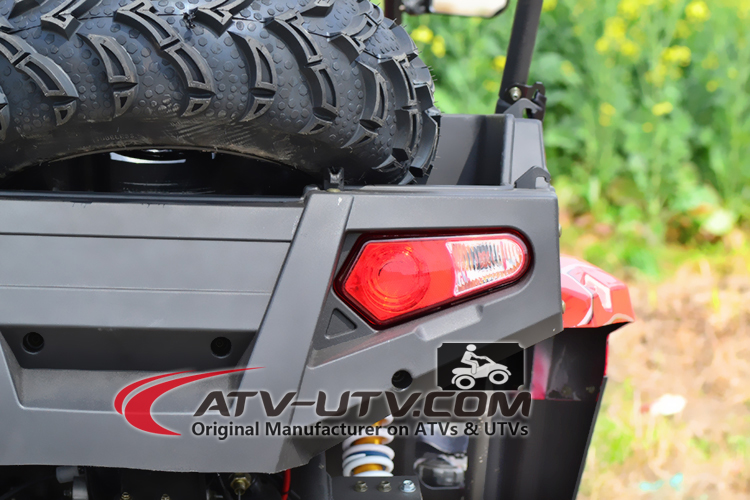

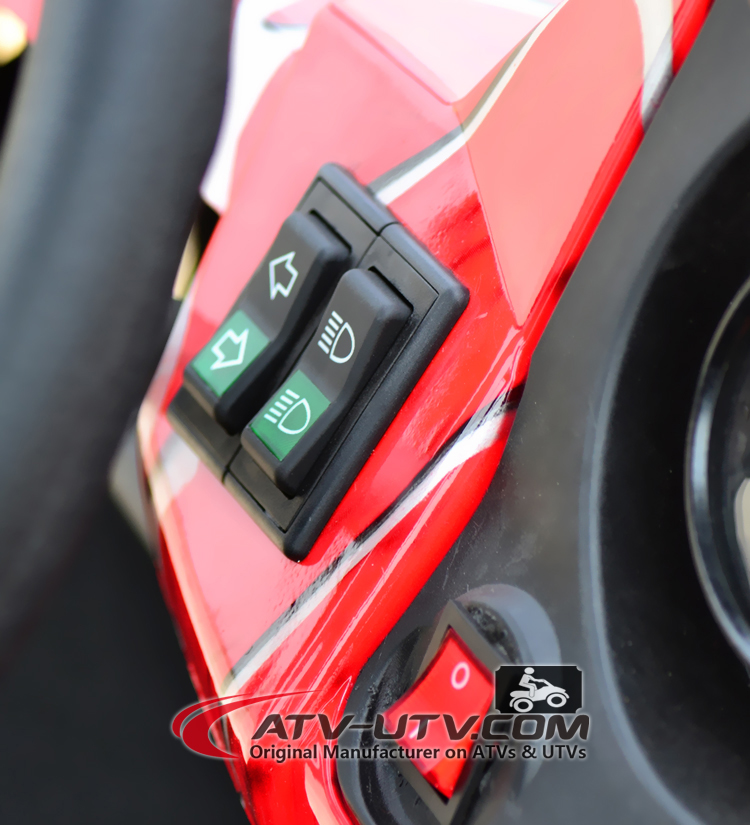

* With Left and right turning light
* With Distance light

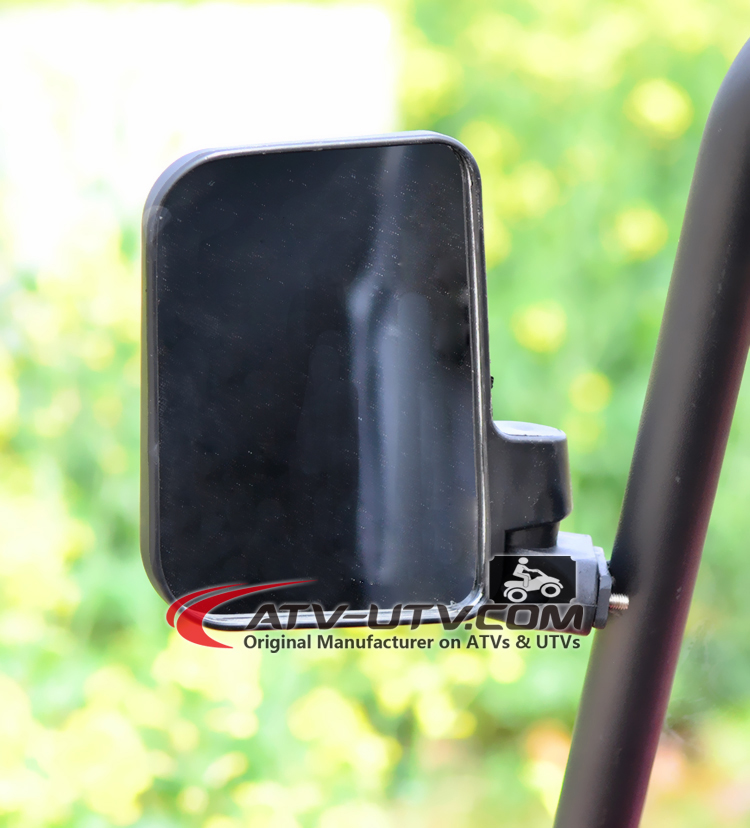

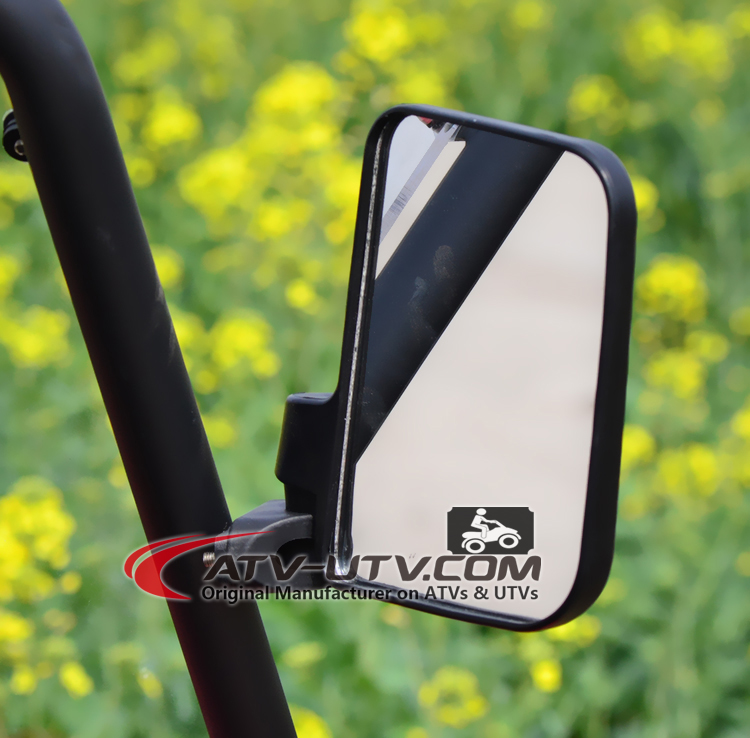

* With Rearview Mirror
* Iron wheel size: Front: 165/70-10; Rear: 225/40-10
* Alloy wheel size: Front: 20x6-10; Rear: 20x11-10
* Windshield: Include


Key Specifications for basic price:
Overall dimensions: 2350 x 1200 x 1530mm
Engine type: 4-stroke,Single-Cylinder, Air/Oil-cooled
Displacement: 150cc
Standard price Dispacement: 150cc
Max power output: 8 kW/8000 r/min-7.6 kW/7000 r/min
Max torque: 10.1 Nm/6000 r/min-10.2 Nm/5000 r/min
Valve Configuration: OHV
Compression ratio: 9.0:1
Fuel Delivery System: Fuel Pump Carburetor
Fuel capacity: 9.0L
Wheel driving Type: 2x4

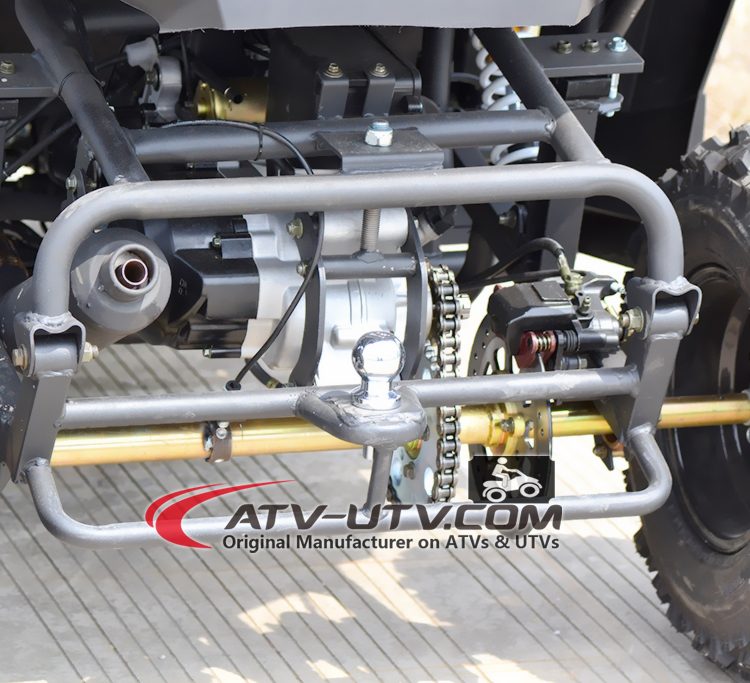

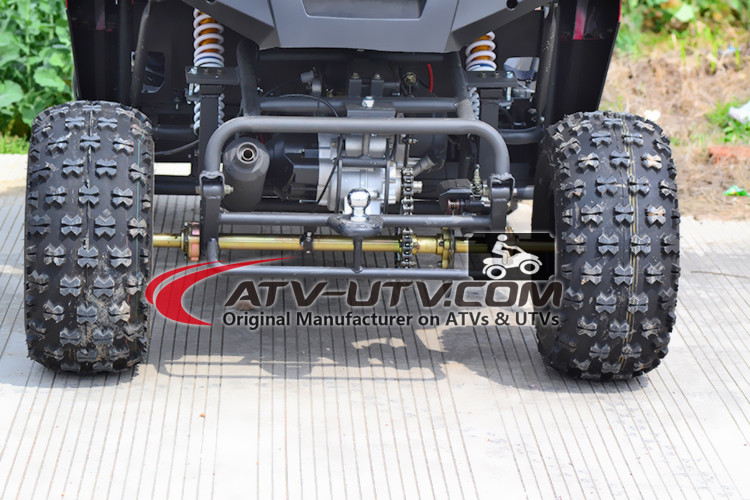

Final Drive: Chain drive
Transmission: Auto cluch chain drive

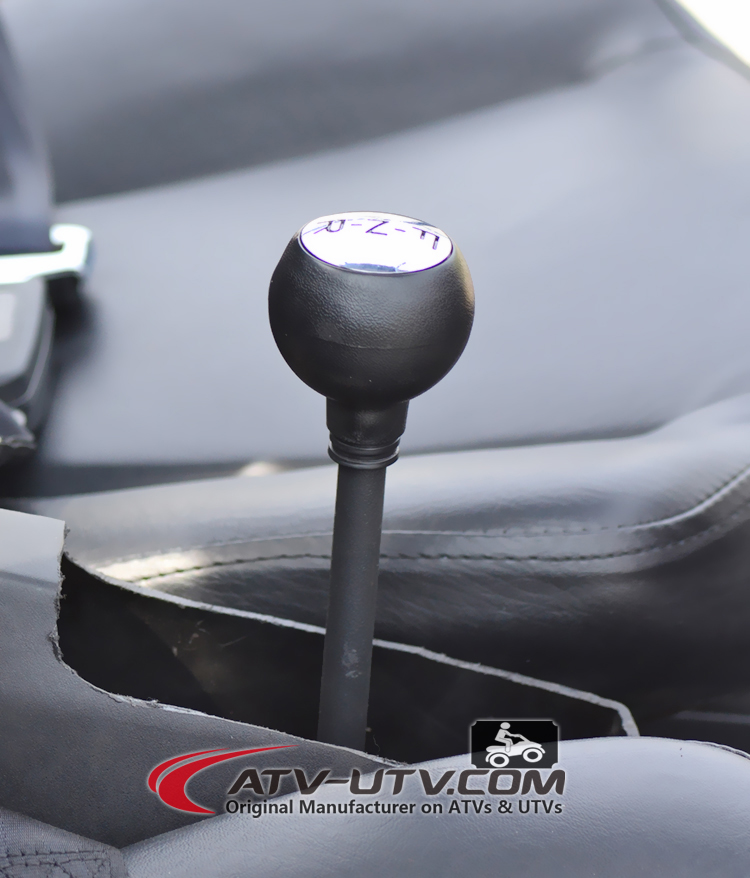

Gear: Manuel, F-N-R
Forward Lights: Headlights-High & Low Beam
Starting system: Electric start
Battery: 12V, 9A
Ignition system: C.D.I
Suspension Front: Double A-arm optional

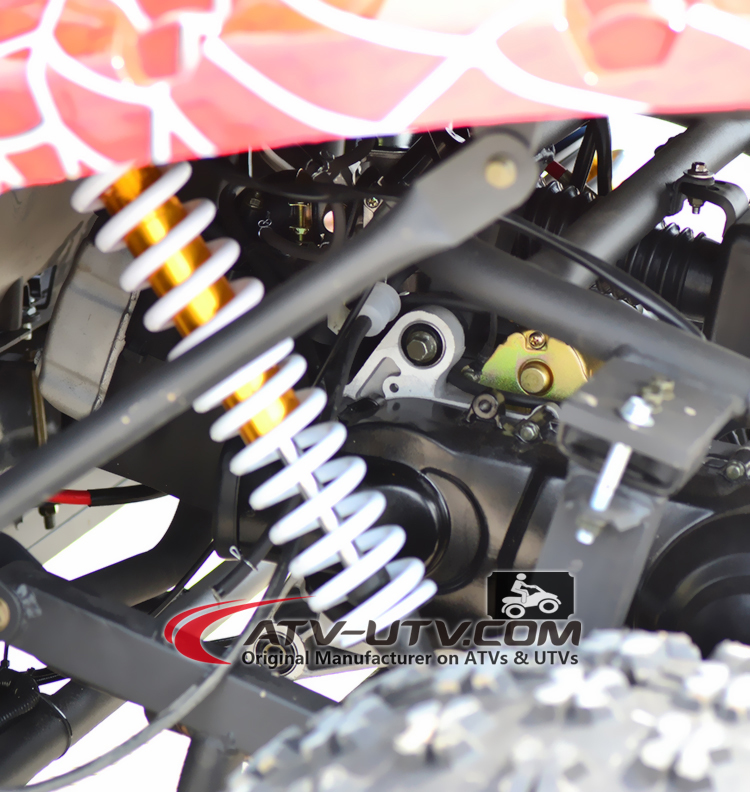

Suspension Rear: Dual Hydraulic Shock Swing arm

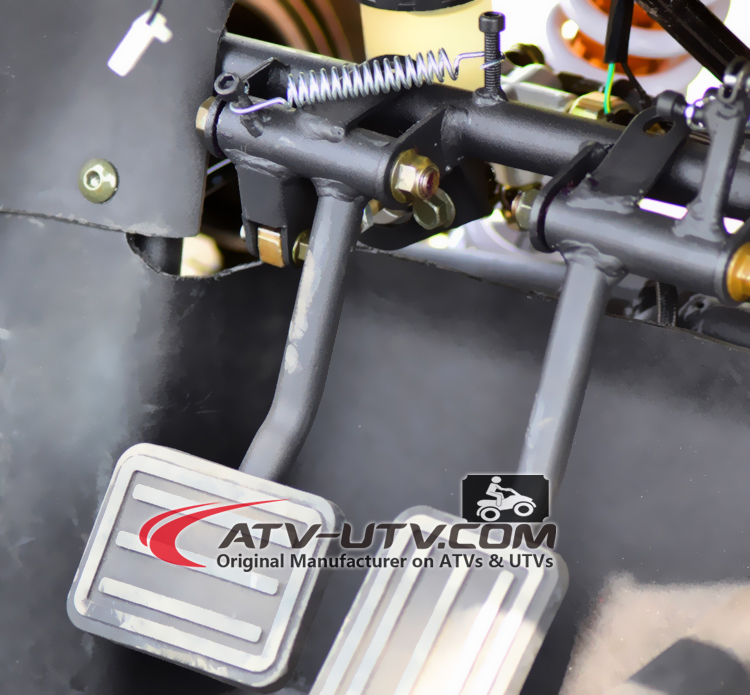

Brake: Front & Rear Disc Brake
Seat height: 550mm
Wheel size: Front: 165/70-10; Rear: 225/40-10
Wheel Rim: Iron
Max speed: 65km/h
Ground clearance: 120mm
Loading capacity: 400kgs
Package: Steel frame with carton outside
Net Weight: 220kgs
Gross Weight: 250kgs
Caton Size: 240x127x102mm
Container: 8pcs/20ft; 18pcs/40ft; 26pcs/40HQ
